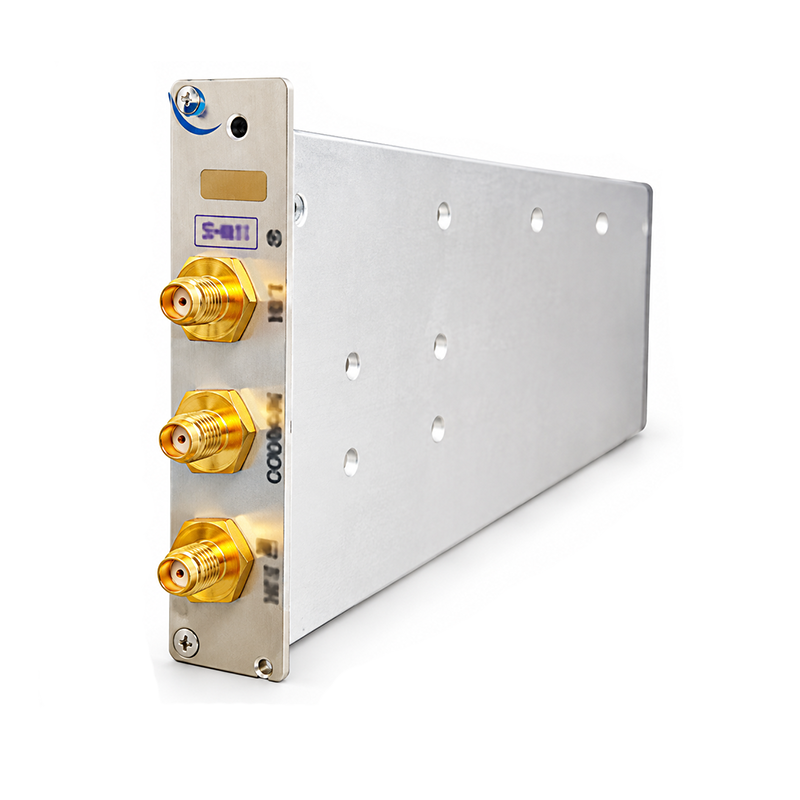

ETL Systems GENUS DIV-G2-Y-205-S5S5 2-Way 10 MHz Active Splitter

ETL Systems GENUS DIV-G2-Y-205-S5S5 2-Way 10 MHz Active Splitter

The ETL Systems DIV-G2-Y-205 is a hot-swappable, 2-way active splitter that distributes a 10 MHz reference signal with nominal unity gain. Designed for GENUS 2U chassis and outdoor units, it can be paired with compatible 50 Ω StingRay transmit modules to build a 1+1 redundant system.

Frequency Range: 10 MHz
Splitter Configuration: 1 input × 2 outputs
Gain: 0 dB ± 1.5 dB
RF Connectors: 50 Ω SMA; all RF ports DC blocked
Isolation: 17 dB typ.; 14 dB minimum
Operational Input Range: −70 to −10 dBm total power
Power Consumption: Less than 3 W
Module Replacement: Hot-swappable
Control & Monitoring: Local and remote through the parent chassis

Key Features

• Splits a 10 MHz signal across two outputs

• Occupies one slot in a GENUS chassis

• Supports 1+1 redundancy with compatible StingRay transmit modules

• Monitors amplifier status, supply voltage, and module temperature

The module requires a compatible GENUS chassis or outdoor unit. Chassis features depend on the selected system configuration.
