ETL Systems LD Series 22497 8-Way UHF Active Splitter

ETL Systems LD Series 22497 8-Way UHF Active Splitter

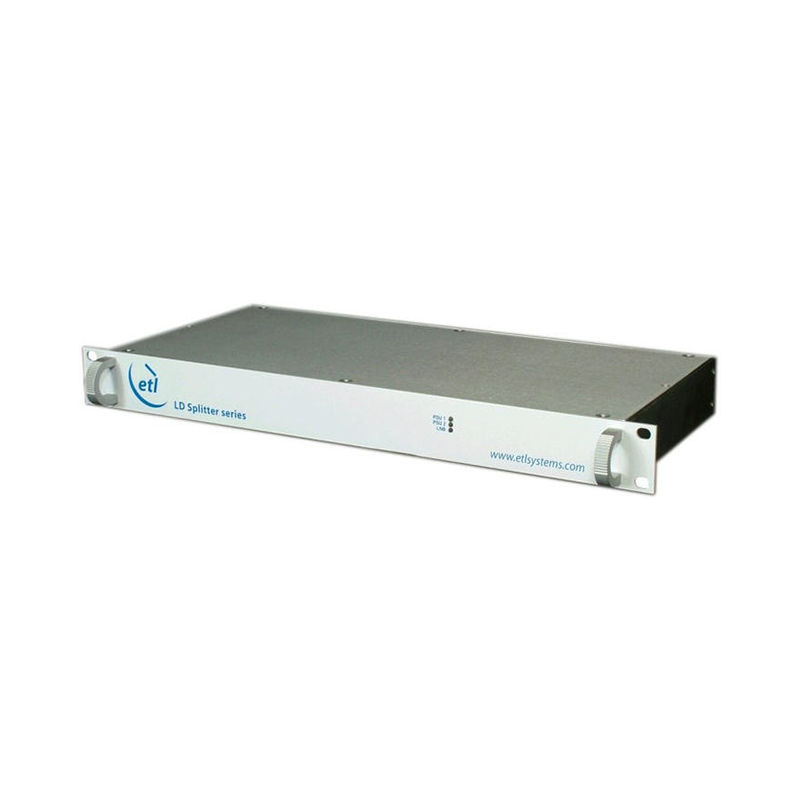

The ETL Systems 22497 is an 8-way active UHF splitter for distributing signals from 375–1250 MHz. Part of the LD Series, it provides nominal unity gain in a 1U rack-mount chassis with dual redundant power supplies.

Frequency Range: 375–1250 MHz
Splitter Capacity: 1 input × 8 outputs
Gain: 0 ± 1.0 dB nominal, mean across band
Gain Flatness: ±1.0 dB typ.
Isolation: 18 dB typ.
Output 1 dB Gain Compression Point: +10 dBm
RF Ports: All DC blocked
Monitoring: Front-panel LEDs for power supply and internal DC status; dry-contact PSU alarm
Power Supplies: Dual redundant, with separate IEC inlets
Form Factor: 1U, 19-inch rack mount

Key Features

• Distributes one UHF signal to eight outputs

• Covers the 375–1250 MHz frequency range

• Provides dual redundant power supplies

• Offers front-panel status indicators and a PSU alarm contact
