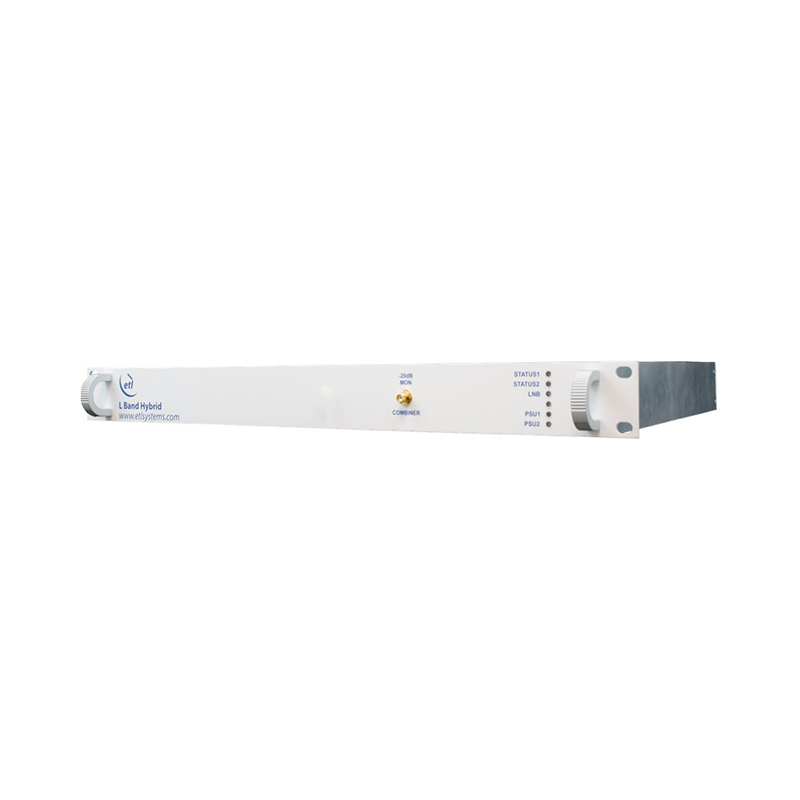

The ETL Systems Dextra 22476 combines two groups of four IF-band signals across 50–1000 MHz in a compact 1U chassis. It includes a −20 dB front-panel monitor port, Ethernet monitoring, and dual redundant power supplies. The OPT-R configuration adds dual redundant amplifiers.

Frequency Range: 50–1000 MHz
Combiner Capacity: Two 4-input × 1-output combiners
Gain: 0 ± 1.0 dB, mean across band
Monitor Port: Front-panel 50 Ω SMA, −20 dB
RF Connector Options: 50 Ω BNC or SMA; 75 Ω F-type or BNC
Isolation at 70 MHz: 30 dB typ.; 20 dB minimum
Remote Control & Monitoring: Ethernet with TCP/IP, SNMP and web interface
Power Supplies: Dual redundant, with separate IEC inlets
Form Factor: 1U, 19-inch rack mount

Key Features

• Combines two independent groups of four IF signals

• Provides a front-panel port for signal monitoring

• Reports amplifier and power supply status locally and remotely

• Offers optional dual redundant amplifiers with OPT-R

The standard model uses a single-path amplifier. Specify OPT-R when ordering if redundant amplifiers are required. RF performance varies by connector configuration.
