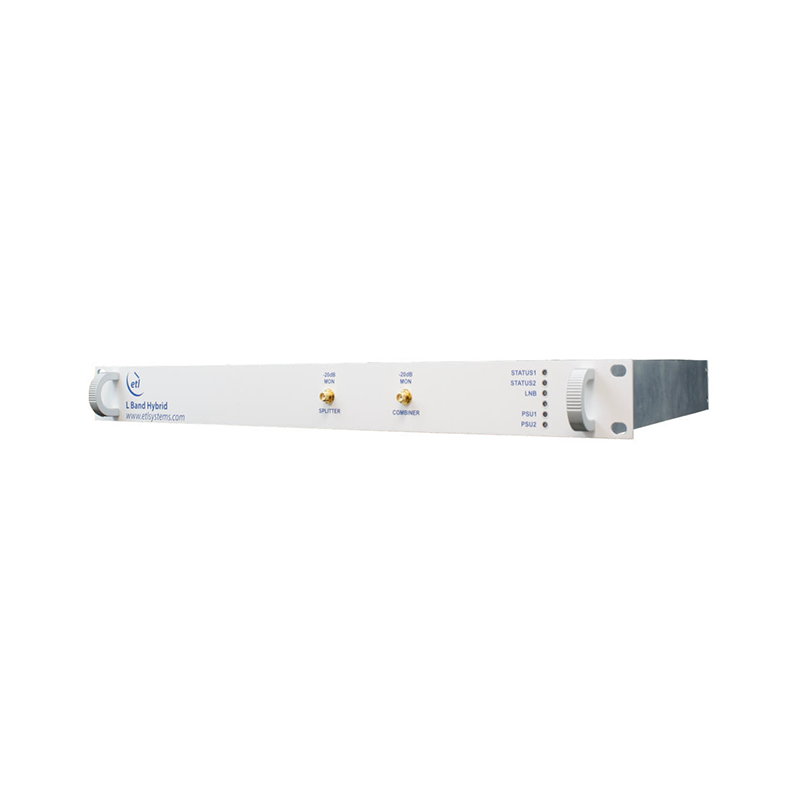

The ETL Systems Dextra 22481 is an 8-way IF distribution unit configurable for signal splitting or combining. It offers 20–200 MHz and 50–1000 MHz frequency configurations in a 1U chassis, with a −20 dB monitor port, Ethernet monitoring, and dual redundant power supplies. Splitter operation also supports switchable LNB power.

Frequency Range: 20–200 MHz or 50–1000 MHz, depending on configuration
Capacity: 1 input × 8 outputs in splitter mode; 8 inputs × 1 output in combiner mode
Gain: 0 ± 1.0 dB for 20–200 MHz; 0 ± 1.2 dB for 50–1000 MHz, mean across band
Monitor Port: Front-panel 50 Ω SMA, −20 dB
RF Connector Options: 50 Ω BNC or SMA; 75 Ω F-type or BNC
LNB Power: Splitter mode only; 0/13/18 V DC, up to 500 mA via the common port, with switchable 22 kHz tone
Control & Monitoring: Ethernet with web interface, SNMP and ETL TCP protocol
Power Supplies: Dual redundant, with separate IEC inlets
Form Factor: 1U, 19-inch rack mount

Key Features

• Configurable for 8-way splitting or 8-way combining

• Front-panel port for signal monitoring

• Optional redundant amplifiers (OPT-R), DC pass from port 1 to the common port (OPT-D), or both (OPT-RD)

• Remote monitoring of power supplies and, in splitter mode, LNB power and current

Confirm the frequency configuration when ordering. The datasheet’s front-page frequency callout differs from its RF specification table; the ranges above follow the table.
