ETL Systems GENUS DIV-G3-L1-403 4-Way L-Band Active Splitter

ETL Systems GENUS DIV-G3-L1-403 4-Way L-Band Active Splitter

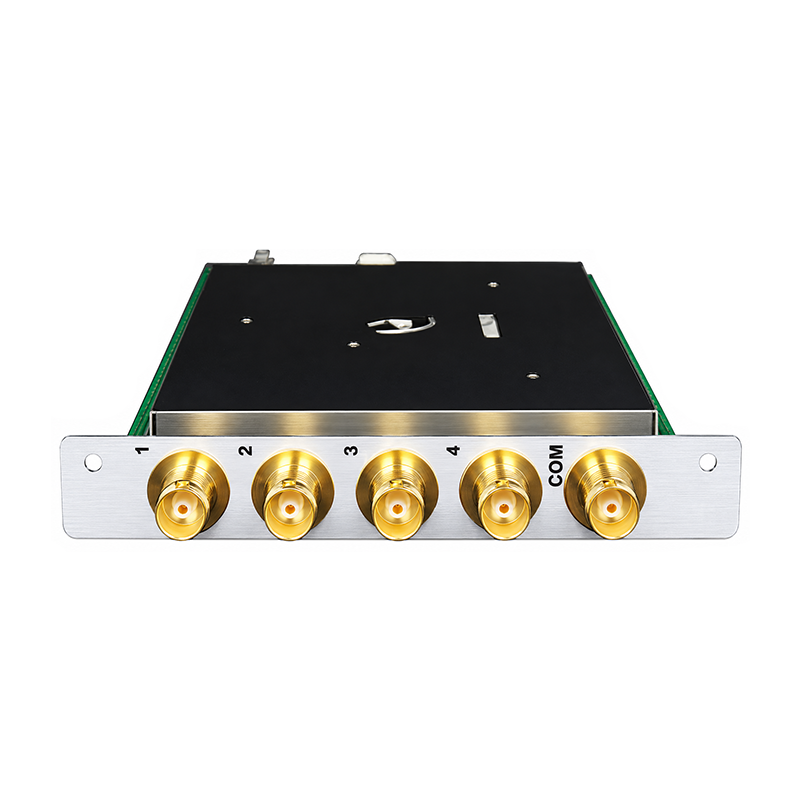

The ETL Systems GENUS DIV-G3-L1-403 is a 4-way active L-band splitter for distributing signals across 850–2150 MHz. Designed to occupy one slot in a 3U GENUS chassis, it provides adjustable gain and slope, input RF detection, and automatic switchover between redundant amplifier chains.

Frequency Range: 850–2150 MHz
Splitter Capacity: 1 input × 4 outputs
Gain Adjustment: 0 to 28 dB nominal range, in 0.25 dB steps
Slope Control: 0 to 8 dB in 1 dB steps
RF Detection: Input signal level from 0 to −40 dBm
Amplifier Redundancy: 1:1 automatic switchover with a cold standby amplifier chain
RF Connector Options: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Control & Monitoring: Local and remote through the selected GENUS chassis
Module Size: Occupies one slot in a 3U GENUS chassis

Key Features

• Distributes one L-band signal to four outputs

• Adjustable gain and slope help balance signal levels

• Built-in input RF detection

• Redundant amplifier chains provide automatic switchover

The module requires a compatible 3U GENUS chassis. Confirm the connector configuration when ordering.
