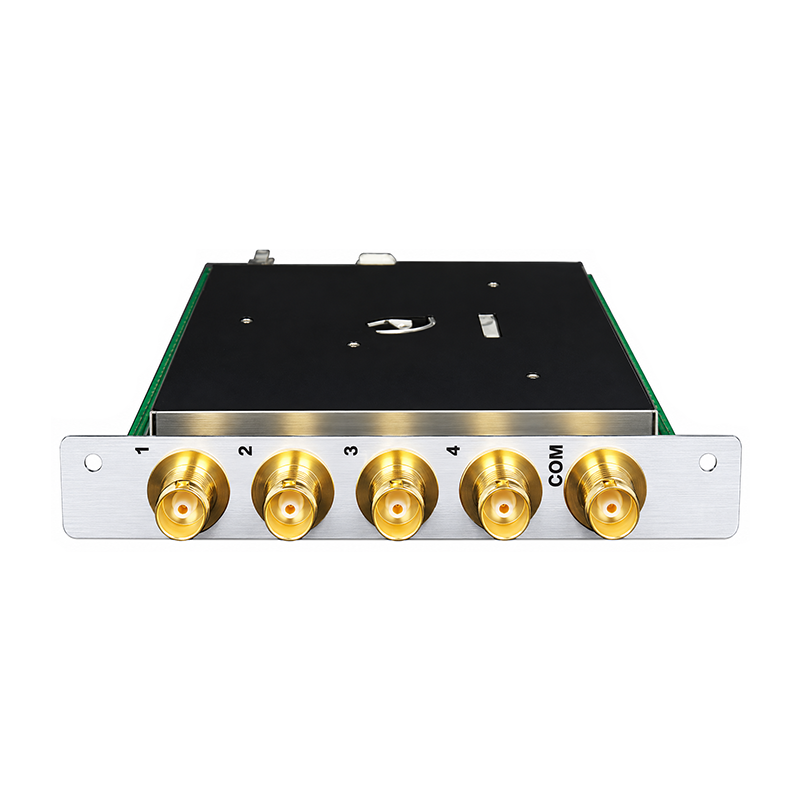

ETL Systems GENUS DIV-G3-L1-404 4-Way L-Band Active Splitter

ETL Systems GENUS DIV-G3-L1-404 4-Way L-Band Active Splitter

The ETL Systems GENUS DIV-G3-L1-404 is a 4-way active L-band splitter for distributing signals across 850–2150 MHz. It occupies one slot in a 3U GENUS chassis and provides adjustable gain and slope, input RF detection, and automatic switchover to a standby amplifier chain.

Frequency Range: 850–2150 MHz
Splitter Capacity: 1 input × 4 outputs
Gain Adjustment: 0 to 28 dB nominal range, in 0.25 dB steps
Slope Control: 0 to 8 dB in 1 dB steps
RF Detection: Input signal level from 0 to −40 dBm
Isolation: 23 dB minimum between outputs; 50 dB minimum between cards at the same gain setting
Amplifier Redundancy: 1:1 automatic switchover with a cold standby amplifier chain
RF Connector Options: 50 Ω SMA or BNC; 75 Ω BNC or F-type
LNB Power: Not provided
Control & Monitoring: Local and remote through the selected GENUS chassis
Module Size: Occupies one slot in a 3U GENUS chassis

Key Features

• Distributes one L-band signal to four outputs

• Adjustable gain and slope help balance signal levels

• Built-in input RF detection and redundant amplifier chains

• DC-blocked RF input ports

The module requires a compatible 3U GENUS chassis. Confirm the connector configuration when ordering.
