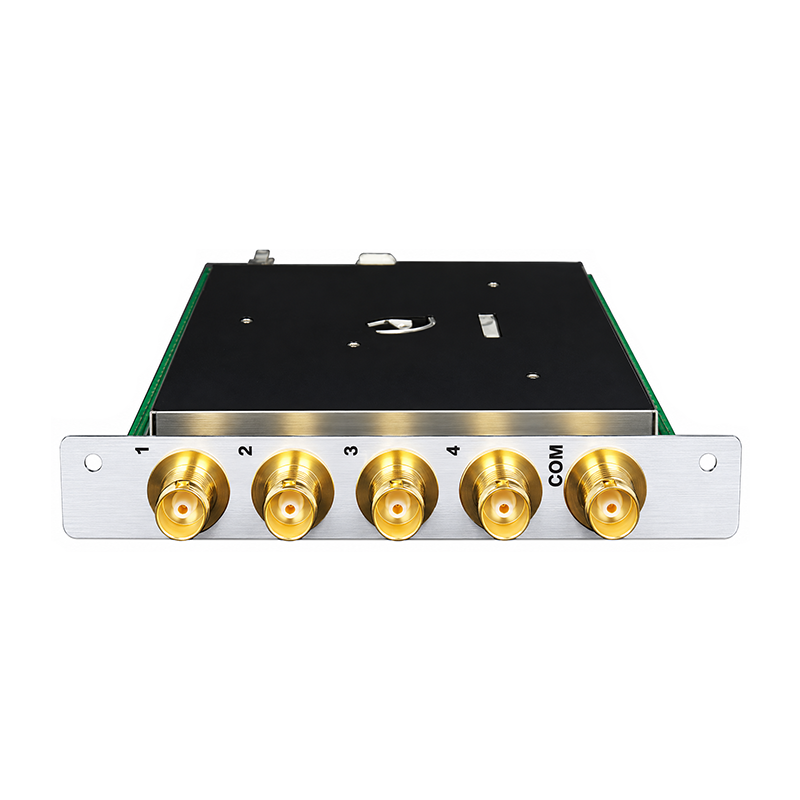

The ETL Systems GENUS DIV-G3-S2-405 is a 4-way active L-band splitter for distributing signals across 850–2150 MHz. Designed for a 3U GENUS chassis, it provides adjustable gain and slope, input RF detection, LNB powering, and automatic switchover to a standby amplifier chain.

Frequency Range: 850–2150 MHz
Splitter Capacity: 1 input × 4 outputs
Gain Adjustment: 0 to 28 dB nominal range, in 0.25 dB steps
Slope Control: 0 to 8 dB in 1 dB steps
RF Detection: Input signal level from 0 to −50 dBm
Amplifier Redundancy: 1:1 automatic switchover with a cold standby amplifier chain
LNB Power: 13/18 V DC, up to 450 mA per card; 22 kHz tone on/off
RF Connector Options: 50 Ω SMA or BNC; 75 Ω BNC or F-type
Control & Monitoring: Local and remote through the selected GENUS chassis
Module Size: Occupies one slot in a 3U GENUS chassis

Key Features

• Distributes one L-band signal to four outputs

• Adjustable gain and slope help balance signal levels

• Built-in input RF detection and redundant amplifier chains

• Supports LNB voltage and 22 kHz tone control

The module requires a compatible 3U GENUS chassis. Confirm the RF connector configuration when ordering.
