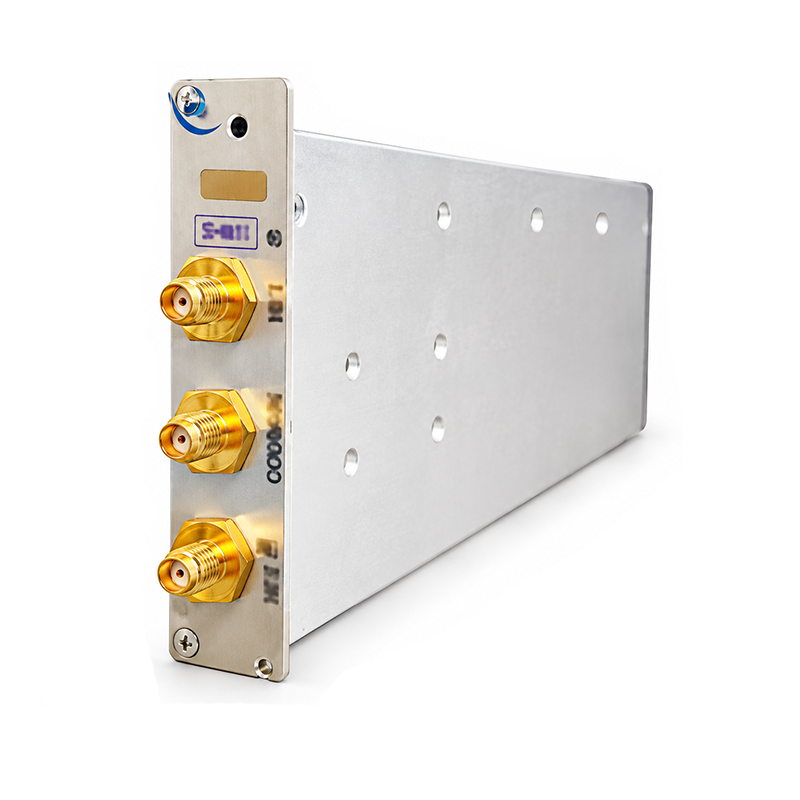

ETL Systems GENUS DIV-G2-SX-204-S5S5 2-Way S-Band Active Splitter

ETL Systems GENUS DIV-G2-SX-204-S5S5 2-Way S-Band Active Splitter

The ETL Systems GENUS DIV-G2-SX-204 is a hot-swappable, 2-way active splitter for distributing 500–3150 MHz signals with nominal unity gain. Designed for GENUS 2U chassis and compatible outdoor units, it also provides 10 MHz reference and DC bypass for integration with compatible StingRay transmit modules in 1+1 redundant systems.

Frequency Range: 500–3150 MHz
Splitter Capacity: 1 input × 2 outputs
Gain: 0 ± 1.5 dB
Isolation: 19 dB typ.; 16 dB minimum
10 MHz Reference Bypass: 0 dB specified loss
DC Bypass: Less than 1 V drop at 500 mA
RF Impedance: 50 Ω output; input impedance depends on configuration
Power Consumption: Less than 3 W
Module Replacement: Hot-swappable
Control & Monitoring: Local and remote through the parent chassis
Module Size: Occupies one slot in a GENUS 2U chassis

Key Features

• Distributes one S-band signal to two outputs

• Provides 10 MHz reference and DC bypass between the common and output ports

• Supports 1+1 redundant systems with compatible 50 Ω StingRay transmit modules

• Monitors amplifier status, supply voltage, and module temperature

The S5S5 datasheet identifies the 50 Ω SMA configuration. Confirm the required connector and impedance arrangement when ordering.
