ETL Systems GENUS COM-G3-S6-402 4-Way S-Band Active Combiner with Output Power Limiting

ETL Systems GENUS COM-G3-S6-402 4-Way S-Band Active Combiner with Output Power Limiting

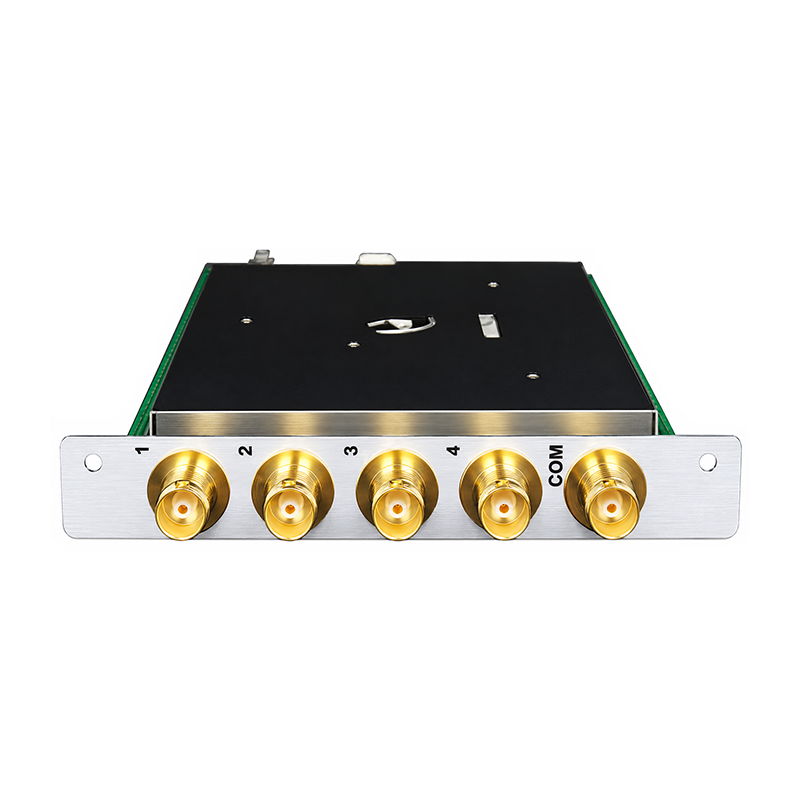

The ETL Systems COM-G3-S6-402 is a 4-way active combiner module for the 3U GENUS chassis. It combines signals across 850–3150 MHz with adjustable gain and slope, redundant amplifiers, output RF detection, and configurable output power limiting.

Frequency Range: 850–3150 MHz (extended L-band / S-band)
Combiner Capacity: 4 inputs, 1 output
Gain: 0 to 28 dB nominal, adjustable in 0.25 dB steps
Slope Control: 0 to 10 dB in 1 dB steps
Output Power Limiting: Configurable −30 to 0 dBm trip limit; specified over 850–2450 MHz
Output RF Detection: 0 to −50 dBm
Amplifier Redundancy: 1:1 automatic switchover with cold standby amplifier
Chassis Compatibility: 3U GENUS; occupies one module slot
Connector Options: 50 Ω SMA, 50 Ω BNC, 75 Ω BNC, or 75 Ω F-type

Key Features

• Configurable output power limiting helps control excessive RF output levels.

• Variable gain and slope help balance combined signal levels.

• Field-serviceable module can be inserted while the GENUS shelf is in service.

• Local and remote control are provided through the selected chassis.

The full part number includes a configuration suffix; confirm connector selection when ordering.
