ETL Systems 22239 LD Series 4-Way L-Band Active Splitter with LNB Power

ETL Systems 22239 LD Series 4-Way L-Band Active Splitter with LNB Power

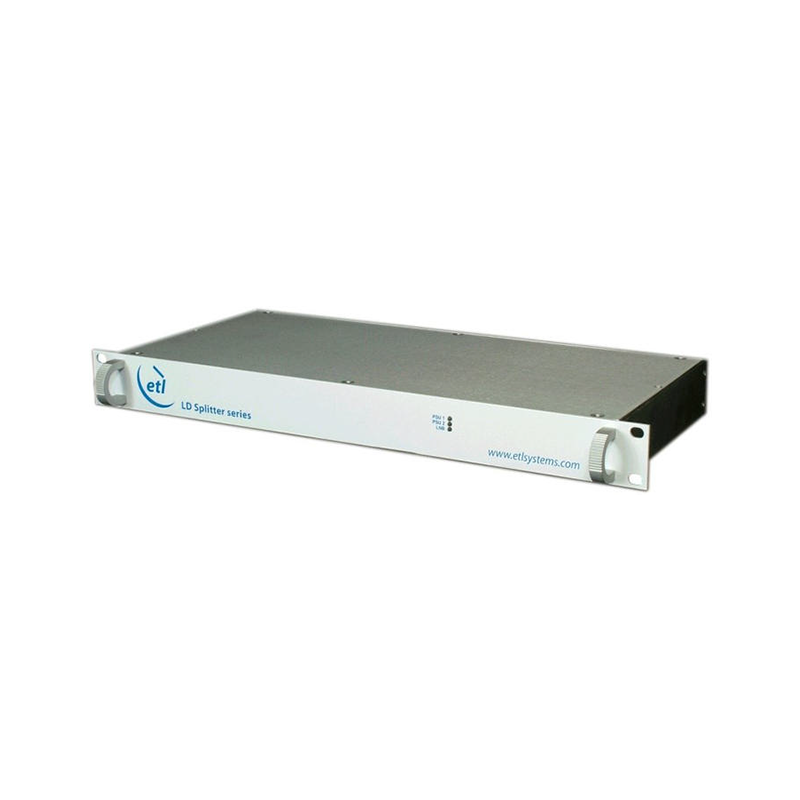

The ETL Systems 22239 LD Series is a 4-way active L-band splitter in a 1U rackmount chassis. It distributes signals across 850–2150 MHz and includes switchable LNB powering and dual redundant power supplies for satellite ground systems.

Frequency Range: 850–2150 MHz
Splitter Capacity: 1 input, 4 outputs
Gain: 0 ±1.5 dB nominal
LNB Power: Switchable 18 V DC nominal, up to 310 mA per channel
Power Supplies: Dual redundant; single IEC AC inlet
AC Input: 85–264 V AC, 50/60 Hz
Monitoring: Front-panel LEDs for both power supplies and LNB power
Form Factor: 1U, 19-inch rackmount
RF Impedance: 50 Ω

Key Features

• Covers the full 850–2150 MHz L-band range.

• Rear-panel switch enables or disables LNB powering.

• Dual redundant power supplies support system resilience.
