ETL Systems 22235 LD Series 16-Way L-Band Active Splitter with LNB Power

ETL Systems 22235 LD Series 16-Way L-Band Active Splitter with LNB Power

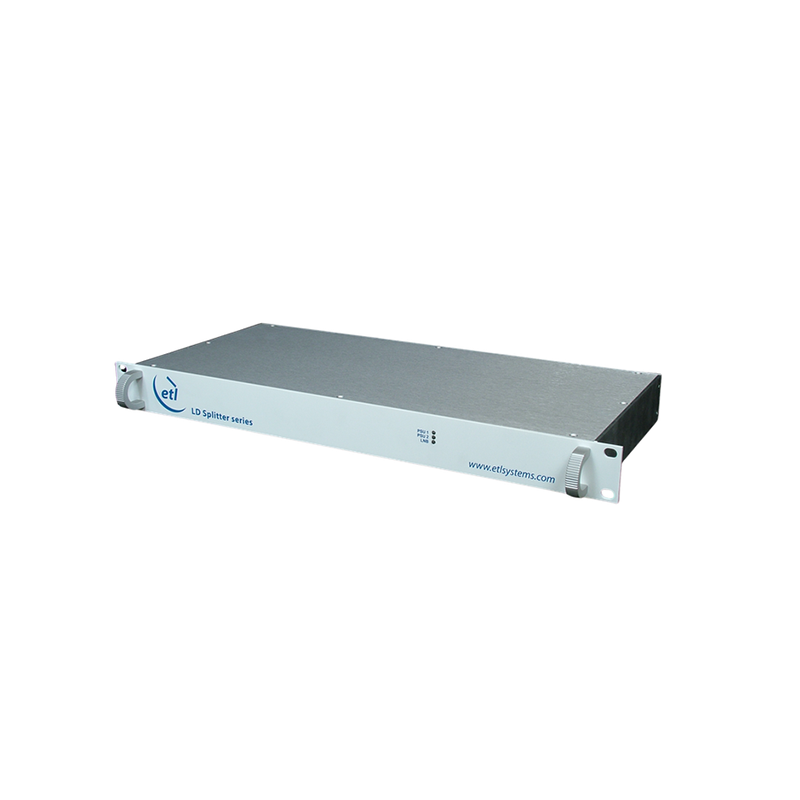

The ETL Systems 22235 LD Series is a 16-way active L-band splitter in a 1U rackmount chassis. It distributes one RF input to 16 outputs and provides switchable LNB powering and dual redundant power supplies for satellite ground systems.

Splitter Capacity: 1 input, 16 outputs
Gain: 0 ±1.5 dB nominal
LNB Power: 18 V DC, up to 310 mA via the common port
Power Supplies: Dual redundant with two IEC AC inlets
AC Input: 85–264 V AC, 50/60 Hz
Monitoring: Front-panel status LEDs
Form Factor: 1U, 19-inch rackmount
Dimensions: 500 mm deep
Frequency Range: Confirm with ETL before publishing

Key Features

• Distributes one L-band signal to 16 outputs.

• Switchable LNB powering is identified in the datasheet overview.

• Separate AC inlets support the dual redundant power supplies.
