ETL Systems 22410 DEXTRA 4-Way Extended L-Band Active Splitter

ETL Systems 22410 DEXTRA 4-Way Extended L-Band Active Splitter

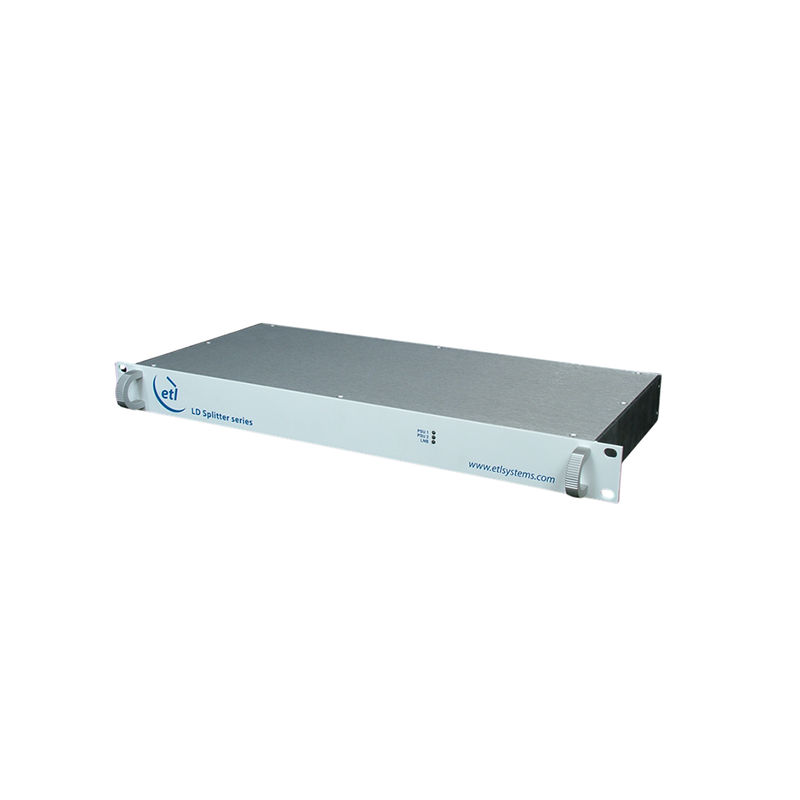

The ETL Systems 22410 DEXTRA is a 4-way active splitter for 850–2450 MHz satellite signal distribution. Its 1U chassis provides switchable LNB powering, a −20 dB monitoring port, remote control, and dual redundant power supplies.

Frequency Range: 850–2450 MHz
Splitter Capacity: 1 input, 4 outputs
Gain: 0 ±1.0 dB, mean across the band
Monitoring Port: −20 dB
LNB Power: Selectable off, 13 V, or 18 V DC; up to 500 mA via the common RF input port
22 kHz Tone: Remotely selectable on or off
Remote Control: Ethernet web browser access, SNMP, and ETL TCP protocol
Alarms: Ethernet status and 9-pin dry-contact alarm port for PSU and LNB supply
Power Supplies: Dual redundant with two IEC AC inlets
Form Factor: 1U, 19-inch rackmount

Key Features

• Covers extended L-band frequencies up to 2450 MHz.

• Front-panel LEDs display local status.

• Optional OPT-R adds remotely configurable redundant amplifiers.

Published RF specifications are for the 50 Ω SMA version. Other connector variants are available; performance may vary. Specify OPT-R when redundant amplifiers are required.
