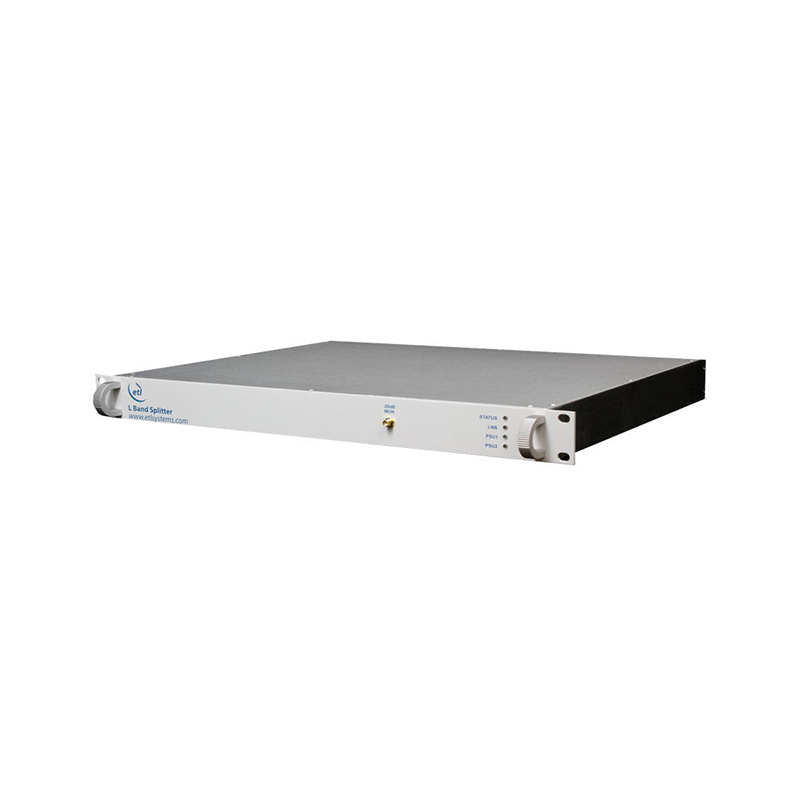

The ETL Systems 22450 DEXTRA is a 4-way active splitter for 850–2450 MHz satellite signal distribution. Its 1U chassis provides switchable LNB powering, 10 MHz reference pass on port 1, a −20 dB front-panel monitor, Ethernet control, and dual redundant power supplies.

Frequency Range: 850–2450 MHz
Splitter Capacity: 1 input, 4 outputs
Gain: 0 ±1.0 dB, mean across the band
10 MHz Reference Pass: Port 1 to common port only; less than 1 dB insertion loss
Front-Panel Monitor: −20 dB, 50 Ω SMA
LNB Power: Selectable off, 13 V, or 18 V DC; up to 500 mA via the common RF input port
22 kHz Tone: Remotely selectable on or off
Remote Control: Ethernet web browser access, SNMP, and ETL TCP protocol
Power Supplies: Dual redundant with two IEC AC inlets
Form Factor: 1U, 19-inch rackmount

Key Features

• Passes a 10 MHz reference signal between port 1 and the common port.

• Front-panel LEDs indicate PSU, LNB supply, and amplifier status.

• Optional OPT-R adds redundant amplifiers; OPT-D adds DC pass between port 1 and the common port; OPT-RD includes both.

DC pass and redundant amplifiers are options and should be specified when ordering. The published RF specifications are for the 50 Ω SMA version; other variants may differ.
