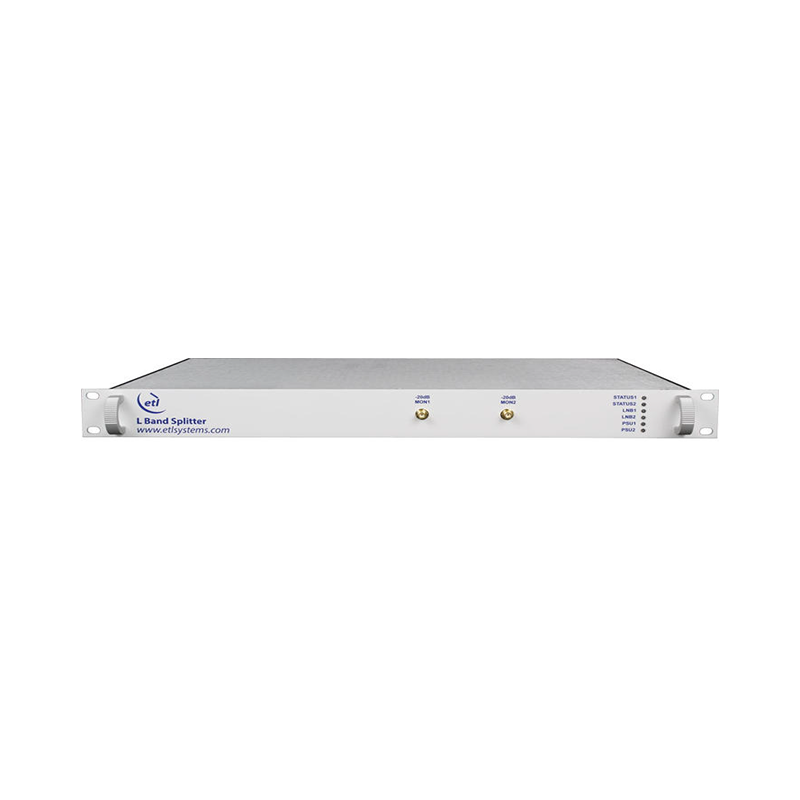

ETL Systems 22413 DEXTRA Dual 8-Way Extended L-Band Active Splitter

ETL Systems 22413 DEXTRA Dual 8-Way Extended L-Band Active Splitter

The ETL Systems 22413 DEXTRA provides two 8-way active splitter paths in a 1U chassis for 850–2450 MHz satellite signal distribution. It includes LNB powering, a −20 dB front-panel monitor, Ethernet control, and dual redundant power supplies.

Frequency Range: 850–2450 MHz
Splitter Capacity: Dual 8-way; two RF inputs and 16 outputs total
Gain: 0 ±1.0 dB, mean across the band
Front-Panel Monitor: −20 dB, 50 Ω SMA
LNB Power: Selectable off, 13 V, or 18 V DC; up to 500 mA via the common RF input port
22 kHz Tone: Remotely selectable on or off
Remote Control: Ethernet web browser access, SNMP, and ETL TCP protocol
Alarms: Ethernet status and 9-pin dry-contact alarm port for PSU and LNB supply
Power Supplies: Dual redundant with two IEC AC inlets
Form Factor: 1U, 19-inch rackmount

Key Features

• Two 8-way active splitter paths provide L-band distribution in one chassis.

• Front-panel LEDs indicate PSU, LNB supply, and amplifier status.

• Optional OPT-R adds redundant amplifiers with hot or cold standby configuration.

Redundant amplifiers are an ordering option. Published RF specifications are for the 50 Ω SMA version; other variants may differ.
