ETL Systems DEXTRA 22414 16-Way L-Band Active Splitter

ETL Systems DEXTRA 22414 16-Way L-Band Active Splitter

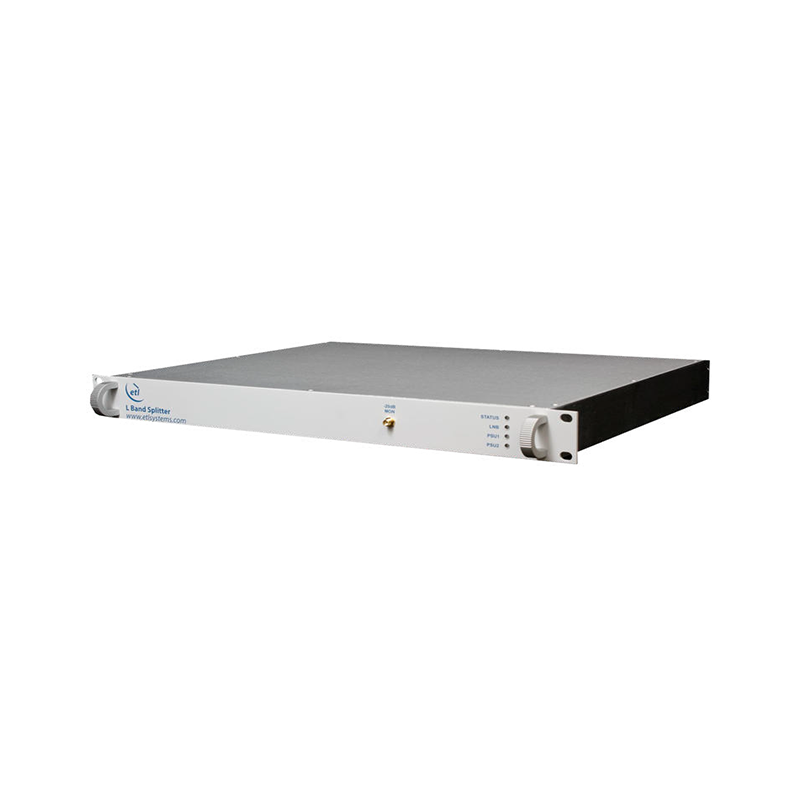

The ETL Systems DEXTRA 22414 distributes one L-band satellite signal to 16 outputs across 850–2450 MHz. This 1U active splitter includes switchable LNB powering, a front-panel monitoring port, and Ethernet control for RF distribution systems.

Frequency Range: 850–2450 MHz
Capacity: One input, 16 outputs
Gain: 0 ±1.0 dB mean across band
Front-Panel Monitor: −20 dB, 50 Ω SMA
LNB Power: Selectable 0/13/18 V DC, up to 500 mA via the RF input; 22 kHz tone on/off
Control & Monitoring: Ethernet with web browser access, SNMP, and LNB current alarm settings
Power Supplies: Dual redundant AC supplies
Form Factor: 1U, 19-inch rack mount

Key Features

• Distributes an extended L-band signal to 16 outputs

• Provides remote LNB voltage, tone, and alarm control

• Includes front-panel status LEDs and dry-contact alarms

• Offers optional hot/cold-standby redundant amplifiers (OPT-R)

Published RF specifications apply to the 50 Ω SMA version; other connector variants may differ.
