ETL Systems Vortex VTXC-101 64×64 L-Band Combining Matrix

ETL Systems Vortex VTXC-101 64×64 L-Band Combining Matrix

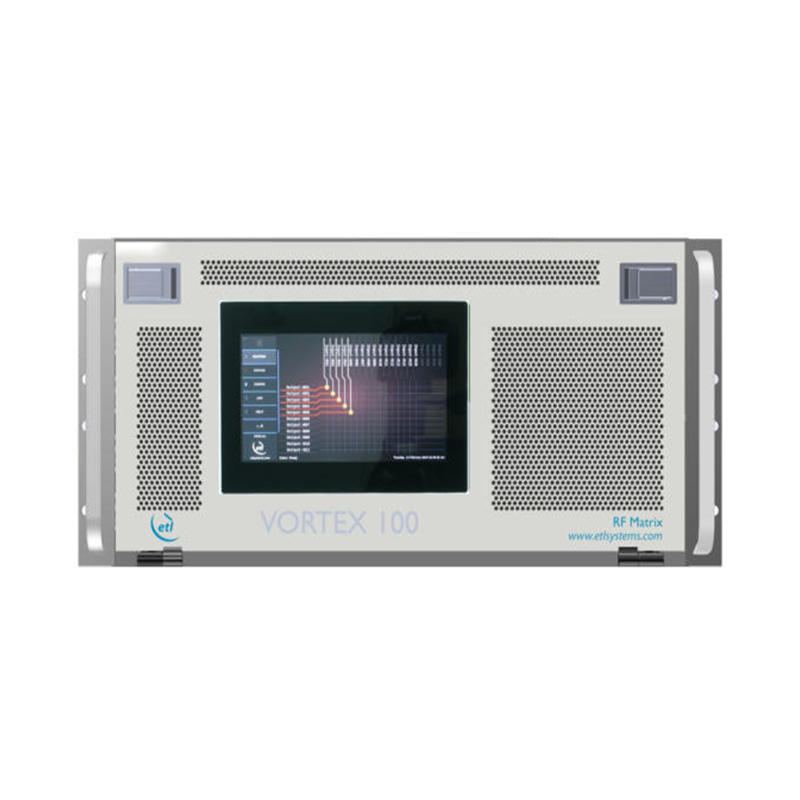

The ETL Systems Vortex VTXC-101 is a non-blocking L-band combining matrix for satellite ground systems. It routes multiple inputs to each output across 850–2150 MHz and can be configured from 16×16 up to 64×64 in steps of 16, including asymmetric input and output counts. Its 5U chassis includes redundant, hot-swappable CPUs and power supplies.

Frequency Range: 850–2150 MHz
Matrix Capacity: Up to 64 inputs × 64 outputs; configurable in steps of 16
Routing: Non-blocking combining; multiple inputs to each output
Switching Time: Less than 150 ms
Gain: 0 ±1 dB typ. mean across band
Noise Figure: 12 dB typ.; 16 dB maximum with one input routed to one output
RF Connectors: 50 Ω SMA or BNC; 75 Ω BNC or F-type; all ports DC blocked
Control & Monitoring: Front-panel touchscreen; Ethernet with HTTPS, SNMPv3, and built-in web server
Redundancy: Dual hot-swappable CPUs and power supplies
Form Factor: 5U, 19-inch rack mount

Key Features

• Supports symmetric or asymmetric input and output configurations

• Expands in blocks of 16 ports

• Uses hot-swappable RF cards and fans

• Provides built-in diagnostics and remote monitoring

Capacity and connector type depend on the configuration ordered. LNB power is not provided.
