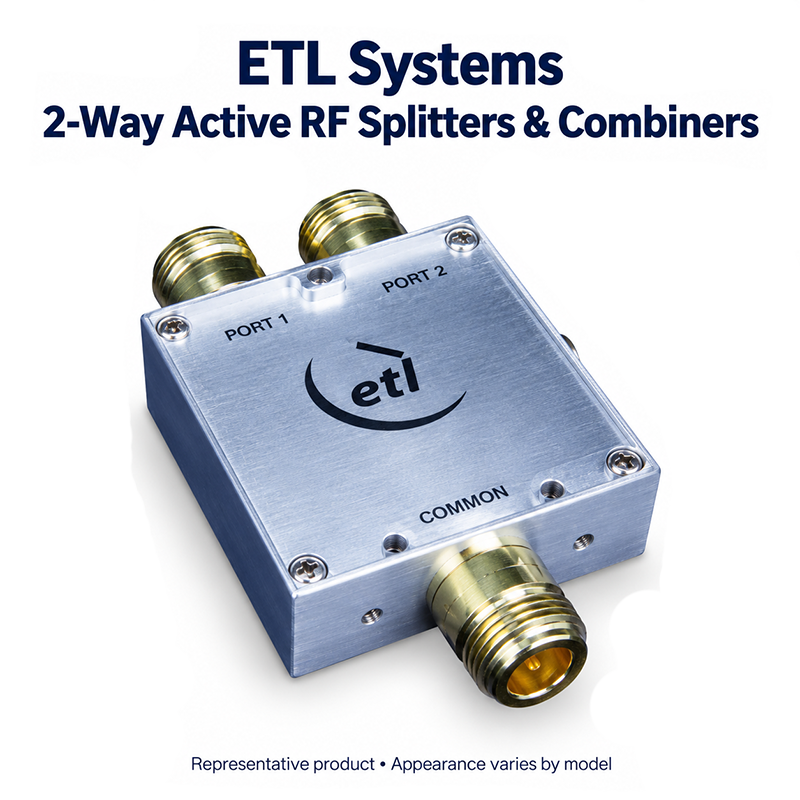

ETL Systems 2-Way Active RF Splitters & Combiners
ETL Systems 2-way active RF splitters and combiners provide signal distribution or combining for satellite communications and RF systems, with model-specific frequency ranges of 850–2150 MHz, 50–2150 MHz, or 50–2800 MHz. Choose a 1-input/2-output splitter or a 2-input/1-output combiner with the connector, impedance, and DC/10 MHz reference arrangements required for your installation.
Frequency Range: 850–2150 MHz, 50–2150 MHz, or 50–2800 MHz, depending on model
Configuration: 2-way active splitter or combiner
Splitter Ports: 1 common input and 2 outputs
Combiner Ports: 2 inputs and 1 common output
Impedance: 50 Ω or 75 Ω, depending on connector option
RF Connectors: SMA, N-type, BNC, or F-type; availability varies by model
Power: External or inline DC bias; requirements vary by model
DC & 10 MHz Reference: Model-specific pass/block arrangements
Key Features
• Active RF signal distribution or combining in compact modules
• High linearity and low amplitude imbalance
• Integrated voltage regulators for protection against supply rail fluctuations
• Selected models support DC pass-through, DC injection, or 10 MHz reference transmission
2-Way Active RF Splitter Models
| Model Number | Frequency Range | Connector Options | DC / 10 MHz Functionality |
| DIV02L1A-2301 | 850–2150 MHz | S5, N5, B5, B7, F7 | DC and 10 MHz blocked |
| DIV02L1A-2340 | 850–2150 MHz | N5, B5, B7, F7 | DC injection through common port only |
| DIV02L1A-2372 | 850–2150 MHz | S5, N5, B7, F7 | One port DC blocked; one port DC pass |
| DIV02L1A-2369 | 850–2150 MHz | S5, N5, B5, B7, F7 | One port DC/10 MHz blocked; one port DC/10 MHz pass |
| DIV02L1A-2390 | 850–2150 MHz | S5, N5, B5, B7 | All ports DC blocked |
| DIV02F1A-2401 | 50–2800 MHz | N5, B5 | All ports DC blocked; 10 MHz pass |
| DIV02B2A-2402 | 50–2150 MHz | S5, N5, B5, B7, F7 | All ports DC blocked; 10 MHz pass |
| DIV02L1A-2420 | 850–2150 MHz | S5, N5, B5, F7 | DC pass between port 1 and common; port 2 DC blocked; 10 MHz blocked |
| DIV02L1A-2423 | 850–2150 MHz | B5, B7, F7 | DC pass between port 1 and common; port 2 DC blocked |
| DIV02L1A-2425 | 850–2150 MHz | S5, N5 | DC blocked; inline bias on common port |
| DIV02L1A-2374 | 850–2150 MHz | N5 | One port DC blocked; one port DC pass |
| DIV02L1A-2432 | 850–2150 MHz | S5, N5, B5 | All ports DC blocked; 10 MHz pass |
2-Way Active RF Combiner Models
| Model Number | Frequency Range | Connector Options | DC / 10 MHz Functionality |
| COM02L1A-2271 | 850–2150 MHz | S5, N5, B7, F7 | All ports DC and 10 MHz pass |
| COM02L1A-2254 | 850–2150 MHz | S5, N5, B5, F7 | DC/10 MHz pass between port 1 and common; port 2 DC/10 MHz blocked |
| COM02L1A-2201 | 850–2150 MHz | S5, N5, B5, B7, F7 | All ports DC blocked |
| COM02F1A-2101 | 50–2800 MHz | S5, N5, B5 | All ports DC blocked; 10 MHz pass |
| COM02L1A-2202 | 850–2150 MHz | S5, N5 | All ports DC blocked |
| COM02B2A-2102 | 50–2150 MHz | S5, N5, B5, B7, F7 | All ports DC blocked; 10 MHz pass |
| Connector Codes: S5 = 50 Ω SMA; N5 = 50 Ω N-type; B5 = 50 Ω BNC; B7 = 75 Ω BNC; F7 = 75 Ω F-type. | |||
| Request a quotation with your required model number, connector option, and quantity. | |||
