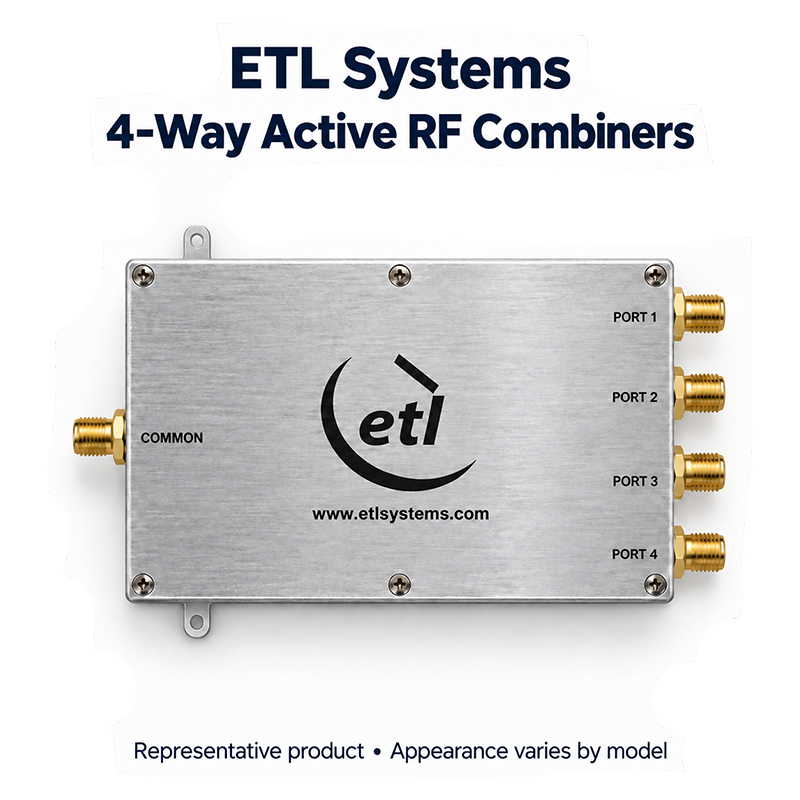

ETL Systems 4-Way Active RF Combiners
ETL Systems 4-way active RF combiners combine four RF inputs into one common output for satellite communications and RF systems, with model-specific frequency ranges of 850–2150 MHz, 850–2500 MHz, 50–2150 MHz, or 50–2800 MHz. Choose from 50 Ω or 75 Ω connector options and different DC/10 MHz reference pass/block arrangements to suit your installation.
Frequency Range: 850–2150 MHz, 850–2500 MHz, 50–2150 MHz, or 50–2800 MHz, depending on model
Configuration: 4-way active RF combiner
Combiner Ports: 4 inputs and 1 common output
Impedance: 50 Ω or 75 Ω, depending on connector option
RF Connectors: SMA, N-type, BNC, or F-type; availability varies by model
Power: External or inline DC bias; requirements vary by model
DC & 10 MHz Reference: Model-specific pass/block arrangements
Key Features
• Active RF signal combining from four inputs into one output
• High linearity and low amplitude imbalance
• Integrated voltage regulators for protection against supply rail fluctuations
• Selected models support DC and 10 MHz reference pass-through
4-Way Active RF Combiner Models
| Model Number | Frequency Range | Connector Options | DC / 10 MHz Functionality |
| COM04L1A-2275 | 850–2150 MHz | N5, F7 | DC and 10 MHz pass between port 1 and common |
| COM04L1A-2270 | 850–2150 MHz | S5, N5, B5, F7 | All ports DC and 10 MHz pass |
| COM04L1A-2252 | 850–2150 MHz | S5, N5, B5, B7, F7 | DC/10 MHz pass between port 1 and common; all other ports DC/10 MHz blocked |
| COM04L1A-2274 | 850–2150 MHz | S5, N5, F7 | DC/10 MHz pass between port 1 and common; all other ports DC/10 MHz blocked |
| COM04L1A-2255 | 850–2150 MHz | S5, N5, B5, F7 | DC/10 MHz pass between port 1 and common; all other ports DC/10 MHz blocked |
| COM04S2A-2264 | 850–2500 MHz | S5 | All ports DC blocked |
| COM04F1A-2105 | 50–2800 MHz | S5, N5, B5 | All ports DC blocked; 10 MHz pass |
| COM04L1A-2204 | 850–2150 MHz | S5, N5, B5, B7, F7 | All ports DC blocked |
| COM04B2A-2106 | 50–2150 MHz | S5, N5, B5, F7 | All ports DC blocked; 10 MHz pass |
| Connector Codes: S5 = 50 Ω SMA; N5 = 50 Ω N-type; B5 = 50 Ω BNC; B7 = 75 Ω BNC; F7 = 75 Ω F-type. | |||
| Request a quotation with your required model number, connector option, and quantity. | |||
