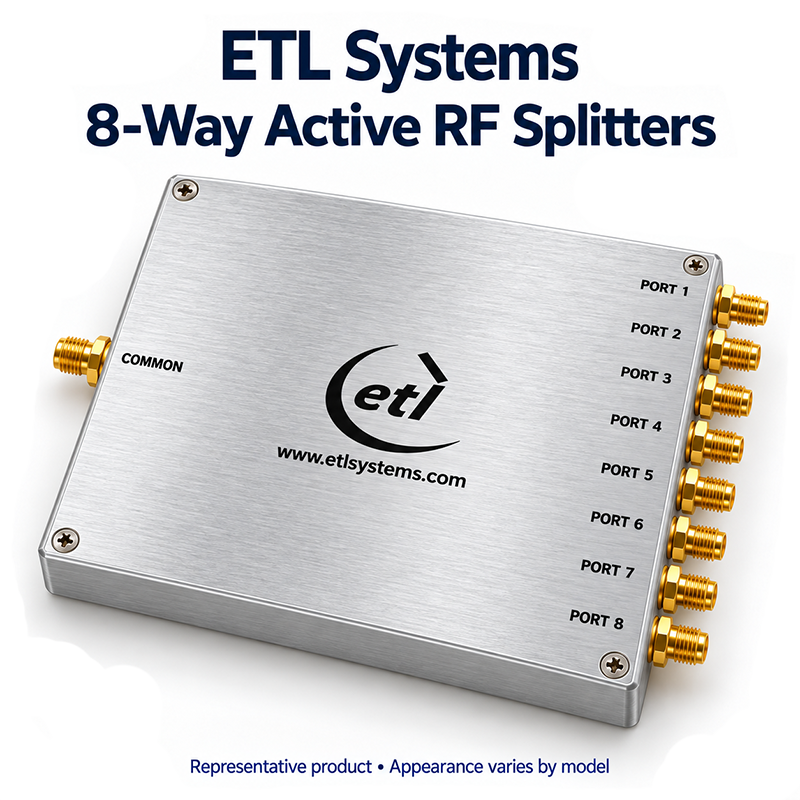

ETL Systems 8-Way Active RF Splitters
ETL Systems 8-way active RF splitters distribute one RF input to eight outputs for satellite communications and RF systems, with model-specific frequency ranges for IF, L-band, S-band, and C-band applications. Choose from 50 Ω or 75 Ω connector options and different DC/10 MHz reference arrangements, including selected models with LNB bias injection.
Frequency Range: 10–1000 MHz, 20–200 MHz, 50–2800 MHz, 850–2150 MHz, 850–2500 MHz, or 3400–4200 MHz, depending on model
Configuration: 8-way active RF splitter
Splitter Ports: 1 common input and 8 outputs
Impedance: 50 Ω or 75 Ω, depending on connector option
RF Connectors: SMA, N-type, BNC, or F-type; availability varies by model
Power: External or inline DC bias; requirements vary by model
DC & 10 MHz Reference: Model-specific pass/block arrangements
LNB Bias: Available on selected models
Key Features
• Active RF signal distribution to eight connected devices
• High linearity and low amplitude imbalance
• Integrated voltage regulators for protection against supply rail fluctuations
• Selected models support DC pass-through, LNB bias injection, or 10 MHz reference transmission
8-Way Active RF Splitter Models
| Model Number | Frequency Range | Connector Options | DC / 10 MHz Functionality |
| DIV08L1A-2308 | 850–2150 MHz | S5, N5, B5, B7, F7 | All ports DC blocked |
| DIV08L1A-2320 | 850–2150 MHz | S5, N5, B7 | DC/10 MHz pass between port 1 and common; all other ports DC/10 MHz blocked |
| DIV08F6A-2333 | 10–1000 MHz | S5, B5, B7 | All ports DC blocked |
| DIV08L1A-2334 | 850–2150 MHz | S5, N5, B5, F7 | DC/10 MHz pass between port 1 and common; all other ports DC blocked |
| DIV08F3A-2335 | 20–200 MHz | B5 | All ports DC blocked; 10 MHz pass |
| DIV08S2A-2416 | 850–2500 MHz | S5, N5, B5 | All ports DC blocked |
| DIV08L1A-2376 | 850–2150 MHz | S5, N5, B5, B7, F7 | DC pass from any output to common; DC blocked between outputs; 10 MHz pass between port 1 and common |
| DIV08C1A-2377 | 3400–4200 MHz | S5, N5 | All ports DC and 10 MHz blocked |
| DIV08F1A-2409 | 50–2800 MHz | S5, N5, B5 | All ports DC blocked; 10 MHz pass |
| DIV08L1A-2395 | 850–2150 MHz | N5, B7, F7 | 12–24 V injection for LNB bias; all other RF ports DC blocked |
| DIV08L1A-2397 | 850–2150 MHz | N5, F7 | 12–24 V injection for LNB bias; all other RF ports DC blocked |
| DIV08L1A-2398 | 850–2150 MHz | S5, F7 | DC/10 MHz pass between port 1 and common; all other ports DC/10 MHz blocked; separate LNB bias injection port |
| DIV08L1A-2419 | 850–2150 MHz | S5, N5, B7 | All ports DC and 10 MHz blocked |
| DIV08L1A-2443 | 850–2150 MHz | S5, N5, B5, B7, F7 | DC pass between port 1 and common; all other ports DC blocked; LNB bias injection from external or inline power |
| DIV08L1A-2448 | 850–2150 MHz | F7 | DC pass from outputs to common; DC blocked between outputs |
| DIV08L1A-2460 | 850–2150 MHz | F7 | All ports DC blocked |
| Connector Codes: S5 = 50 Ω SMA; N5 = 50 Ω N-type; B5 = 50 Ω BNC; B7 = 75 Ω BNC; F7 = 75 Ω F-type. | |||
| Request a quotation with your required model number, connector option, and quantity. | |||
