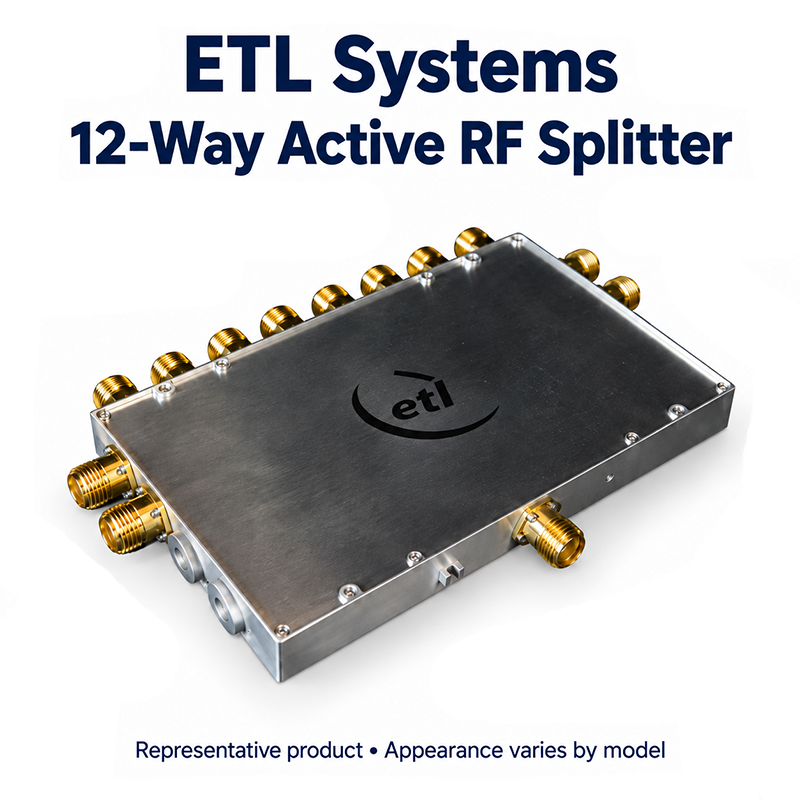

ETL Systems 12-Way & 16-Way Active RF Splitters & Combiners
ETL Systems 12-way and 16-way active RF splitters and combiners provide signal distribution or combining for reference, IF, and L-band systems. The group includes a 12-way 10 MHz reference splitter, a 16-way 20–200 MHz splitter, and 16-way combiners operating at 20–200 MHz or 850–2150 MHz, with model-specific connector and DC/10 MHz arrangements.
Frequency Range: 10 MHz, 20–200 MHz, or 850–2150 MHz, depending on model
Configuration: 12-way splitter, 16-way splitter, or 16-way combiner
Splitter Ports: 1 common input and 12 or 16 outputs
Combiner Ports: 16 inputs and 1 common output
Impedance: 50 Ω or 75 Ω, depending on connector option
RF Connectors: SMA, N-type, BNC, or F-type; availability varies by model
Power: External or inline DC bias; requirements vary by model
DC & 10 MHz Reference: Model-specific pass/block arrangements
Key Features
• Active signal distribution or combining for systems with multiple connected devices
• Dedicated 12-way splitter for 10 MHz reference distribution
• 16-way models for IF and L-band applications
• Integrated voltage regulators for protection against supply rail fluctuations
• Selected L-band combiners support DC and 10 MHz reference pass-through
12-Way & 16-Way Active RF Splitter Models
| Model Number | Configuration | Frequency Range | Connector Options | DC Functionality |
| DIV12F5A-2450 | 12-way splitter | 10 MHz | B5 | All ports DC blocked |
| DIV16F3A-2361 | 16-way splitter | 20–200 MHz | S5, N5, B5 | All ports DC blocked |
16-Way Active RF Combiner Models
| Model Number | Frequency Range | Connector Options | DC / 10 MHz Functionality |
| COM16L1A-2273 | 850–2150 MHz | S5, N5, B5, B7, F7 | DC/10 MHz pass between port 1 and common; all other branch ports DC/10 MHz blocked |
| COM16L1A-2227 | 850–2150 MHz | S5, N5, B5, B7 | DC/10 MHz pass between port 1 and common; all other branch ports 10 MHz pass and DC blocked |
| COM16L1A-2223 | 850–2150 MHz | N5, F7 | All ports DC blocked |
| COM16F3A-2241 | 20–200 MHz | S5, N5, B5, F7 | All ports DC blocked |
| Connector Codes: S5 = 50 Ω SMA; N5 = 50 Ω N-type; B5 = 50 Ω BNC; B7 = 75 Ω BNC; F7 = 75 Ω F-type. | |||
| Request a quotation with your required model number, connector option, and quantity. | |||
