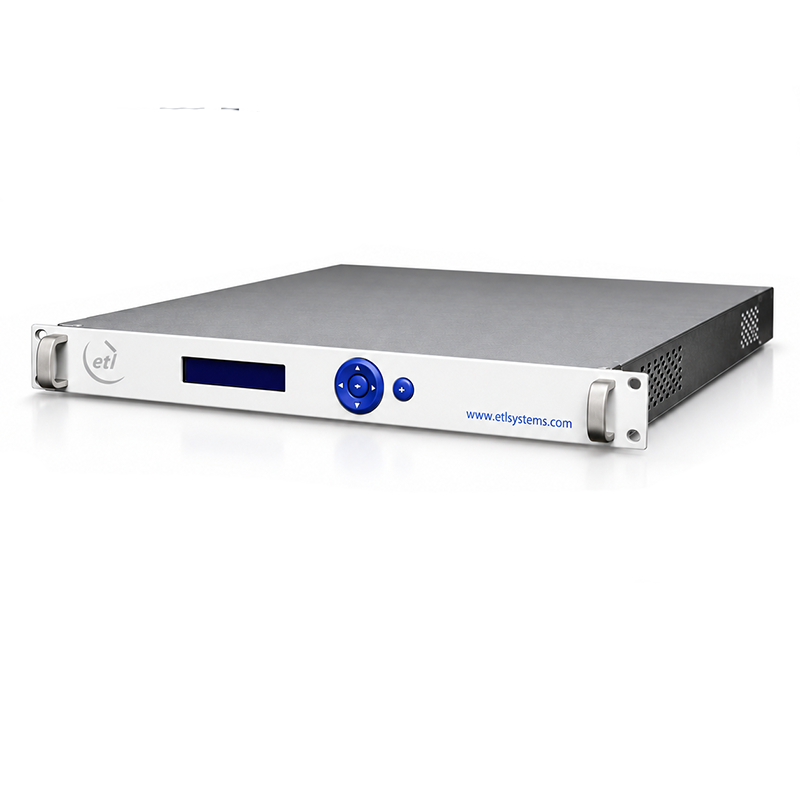

ETL Systems LS 23228 1×8 RF Routing Switch

ETL Systems LS 23228 1×8 RF Routing Switch

The ETL Systems LS 23228 is a 1×8 solid-state RF routing switch that connects one IF or extended L-band input to one of eight selectable outputs. Operating across 50–2450 MHz, it routes signals to different IRDs, modems, or RF equipment through local and remote control, with dual redundant, hot-swappable power supplies.

Frequency Range: 50–2450 MHz
Capacity: 1 input, 8 selectable outputs
Switch Type: Solid state
Gain: 0 dB ±1.0 dB
Flatness: ±0.8 dB
Input-to-Output Isolation: 75 dB
1 dB Gain Compression Point: 10 dBm
Noise Figure: 13 dB typ.
Input / Output Return Loss: 20 dB typ.
Control & Monitoring: Front-panel LCD and push buttons; RS232/RS485, Ethernet, SNMP, and web browser interface
Power Supplies: Dual redundant, hot-swappable
RF Connector Options: 50 Ω BNC or SMA; 75 Ω BNC or F-type
Form Factor: 1U, 19-inch rack mount; 350 mm deep
Operating Temperature: 0–45 °C; indoor use
Weight: 4 kg

Key Features

• Routes one RF input to one of eight outputs

• Supports signal selection for IRDs and modems

• Local and remote switching control

• Solid-state design for long service life
