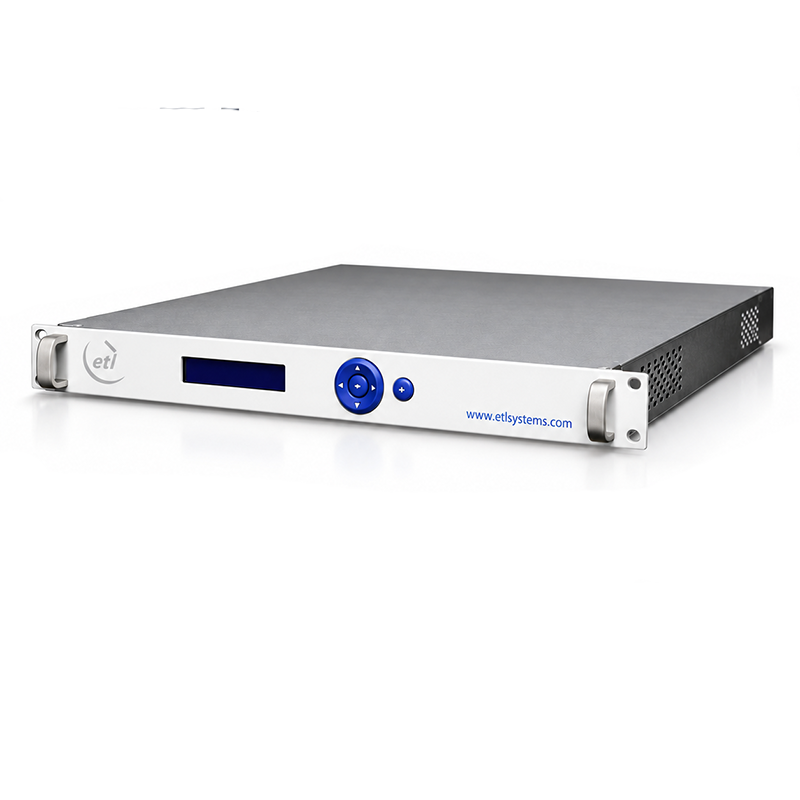

ETL Systems LS 23230 1×32 RF Routing Switch

ETL Systems LS 23230 1×32 RF Routing Switch

The ETL Systems LS 23230 is a 1×32 solid-state RF routing switch that connects one IF or extended L-band input to one of thirty-two selectable outputs. Operating across 50–2450 MHz, it routes signals to different IRDs, modems, or RF equipment through local and remote control, with dual redundant, hot-swappable power supplies.

Frequency Range: 50–2450 MHz
Capacity: 1 input, 32 selectable outputs
Switch Type: Solid state
Gain: 0 dB ±1.0 dB
Flatness: ±0.8 dB
Input-to-Output Isolation: 75 dB
1 dB Gain Compression Point: 10 dBm
Noise Figure: 13 dB typ.
Input / Output Return Loss: 20 dB typ.
Control & Monitoring: Front-panel LCD and push buttons; RS232/RS485, Ethernet, SNMP, and web browser interface
Power Supplies: Dual redundant, hot-swappable
RF Connector Options: 50 Ω BNC or SMA; 75 Ω BNC or F-type
Form Factor: 1U, 19-inch rack mount; 350 mm deep
Operating Temperature: 0–45 °C; indoor use
Weight: 4 kg

Key Features

• Routes one RF input to one of thirty-two outputs

• Supports signal selection for IRDs and modems

• Local and remote switching control

• Solid-state design for long service life
