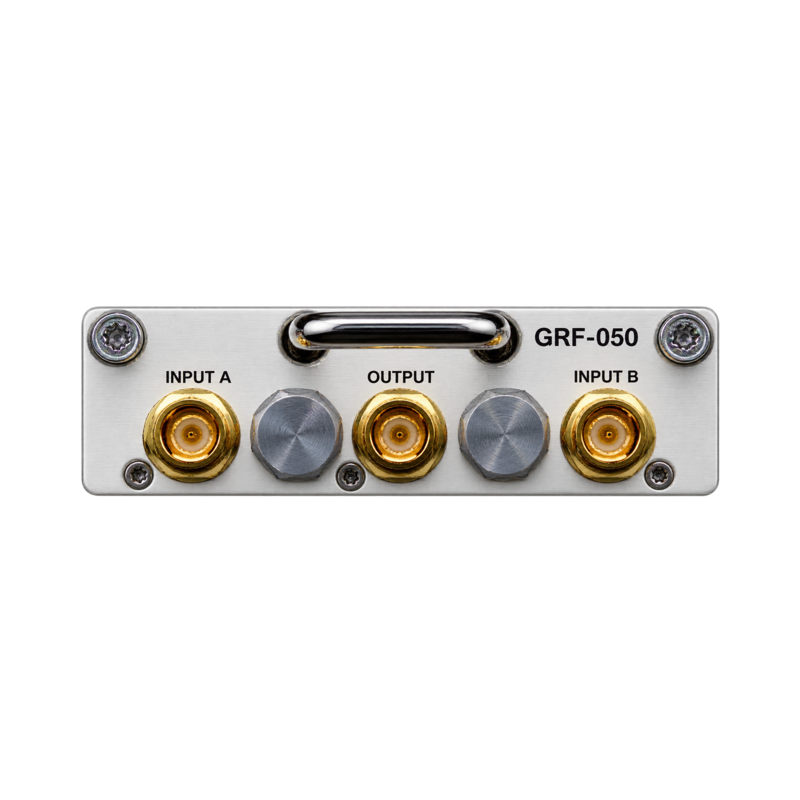

ETL Systems GRIFFIN GRF-050 2×1 RF Redundancy Switch Module

ETL Systems GRIFFIN GRF-050 2×1 RF Redundancy Switch Module

The ETL Systems GRIFFIN GRF-050 is a 2×1 RF redundancy switch module covering DC–2450 MHz, with a latching relay and DC and 10 MHz pass-through on all ports. Designed for the GRF-C900-1U chassis, it provides controlled selection between two RF signal paths for satellite communications and RF routing applications.

Frequency Range: DC–2450 MHz
Switch Configuration: 2 inputs × 1 output
Switch Type: Latching relay
RF Path: Passive
Insertion Loss: 1 dB typ.
Isolation: 60 dB typ.; 45 dB minimum
Flatness: ±1 dB across the full band; ±0.25 dB over any 40 MHz
RF Ports: DC and 10 MHz pass-through on all ports
Connector Options: 50 Ω SMA, BNC or N-type; 75 Ω BNC or F-type, depending on configuration
RF Level Detection: None
Contact Rating: 28 VDC, 250 mA
Compatible Chassis: GRF-C900-1U
Module Slots Used: One

Key Features

• Wideband coverage from DC through extended L-band

• Low-loss passive RF signal path

• DC and 10 MHz reference pass-through

• Hot-swappable module design for the GRIFFIN chassis

• Connector and impedance options to suit the installation

Requires a compatible GRIFFIN chassis. Specify the connector type and impedance when requesting a quotation.
