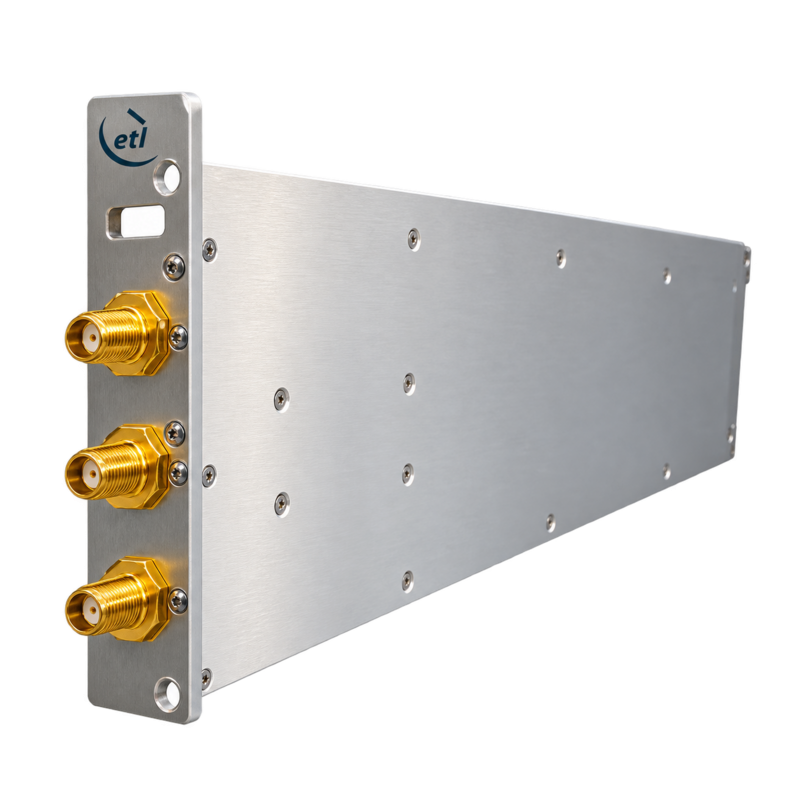

ETL Systems SWF-G2S-S6-123 2×1 S-Band Active RF Redundancy Switch

ETL Systems SWF-G2S-S6-123 2×1 S-Band Active RF Redundancy Switch

The ETL Systems SWF-G2S-S6-123 provides automatic RF redundancy switching over 500–3150 MHz in a compact, hot-swappable GENUS module. RF detection at both inputs enables switching based on a configurable signal-level difference, helping maintain signal continuity in satellite systems. The module offers nominal unity gain, 10 MHz reference pass-through and compatibility with optical receivers in the StingRay GENUS chassis series.

Frequency Range: 500–3150 MHz
Switch Configuration: 2×1 active RF redundancy switch
Gain: 0 dB ±1.5 dB across 500–3150 MHz
RF Input Signal Range: −55 to −5 dBm total power
Switching Threshold: Configurable 2–30 dB differential
Switching Delay: Configurable 0–10 seconds
10 MHz Reference: Pass-through from common port to multiple ports
RF Ports: DC blocked; SMA and BNC 50 Ω, BNC and F-type 75 Ω options
Noise Figure: 12 dB maximum
Operating Temperature: −20°C to +60°C
Module Dimensions: 19 × 87 × 225 mm (W × H × D)
Weight: 0.4 kg typ.
Chassis Compatibility: GENUS chassis; occupies one slot

Key Features

• RF detection at both inputs for automatic redundancy switching

• Adjustable switching threshold and delay

• Hot-swappable, field-replaceable module

• Nominal unity gain with 10 MHz reference pass-through

• Suitable for use with StingRay GENUS optical receivers

Requires a compatible GENUS chassis. Please specify the connector type and impedance when requesting a quotation.
