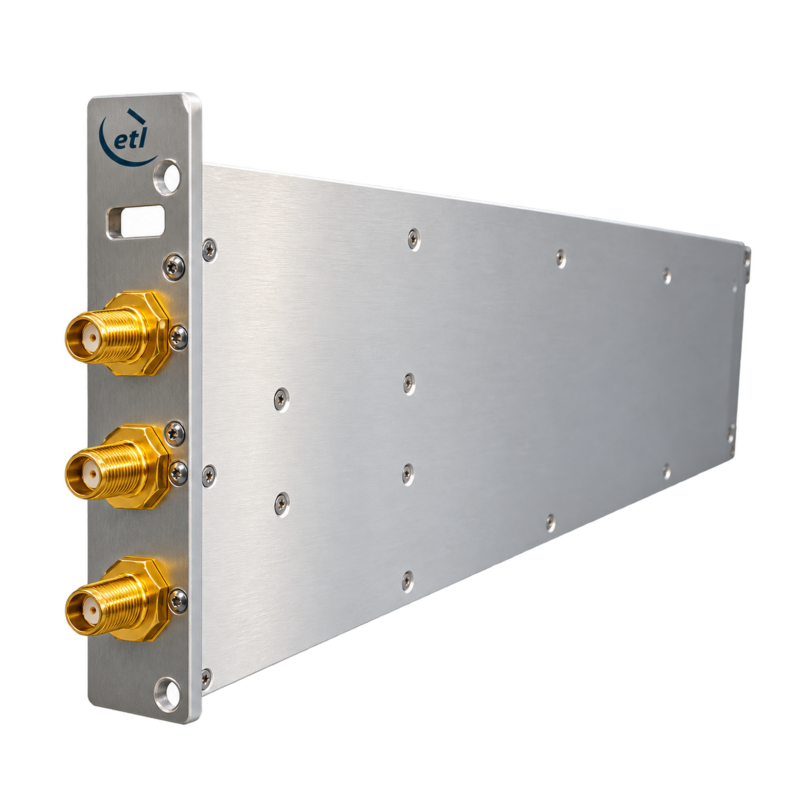

ETL Systems Swift SWF-G2S-S6-118 2×1 S-Band Latching RF Redundancy Switch

ETL Systems Swift SWF-G2S-S6-118 2×1 S-Band Latching RF Redundancy Switch

The ETL Systems Swift SWF-G2S-S6-118 provides automatic RF redundancy switching over 500–3150 MHz using a latching electromechanical relay. RF detection at both inputs supports switching based on signal-level difference or active-path level. After switching, the module maintains the selected path when the original signal recovers, reducing unnecessary switching operations. Its hot-swappable design integrates with compatible StingRay GENUS 2U or outdoor chassis.

Frequency Range: 500–3150 MHz
Switch Configuration: 2×1 latching electromechanical relay (SPDT)
RF Ports: SMA, 50 Ω
Insertion Loss: 2 dB nominal at 2 GHz; 3 dB maximum
Flatness: ±1.0 dB across 850–2150 MHz; ±1.5 dB across 500–3150 MHz
Return Loss: 12 dB minimum
Isolation: 50 dB minimum, path to path
RF Level Detection Range: −45 to −5 dBm total power
Differential Switching Threshold: Configurable 4–20 dB
Switchover Timing: Configurable up to 10 seconds; 15 ms at zero-delay setting
Switch Action: Break before make
Switch Life: 10,000,000 cycles minimum
Manual Control: Web interface, ASCII protocol or local chassis HMI
Operating Temperature: −20°C to +60°C
Chassis Compatibility: StingRay GENUS 2U or outdoor chassis; occupies one slot

Key Features

• Automatic switching by input-level comparison or active-path level

• Latching operation retains the new path after the original signal recovers

• Manual path selection through local or remote controls

• Hot-swappable, field-replaceable module

• Low insertion loss with 50 dB minimum path isolation

Requires a compatible GENUS chassis. Outdoor operation requires the appropriate protective outdoor chassis.
