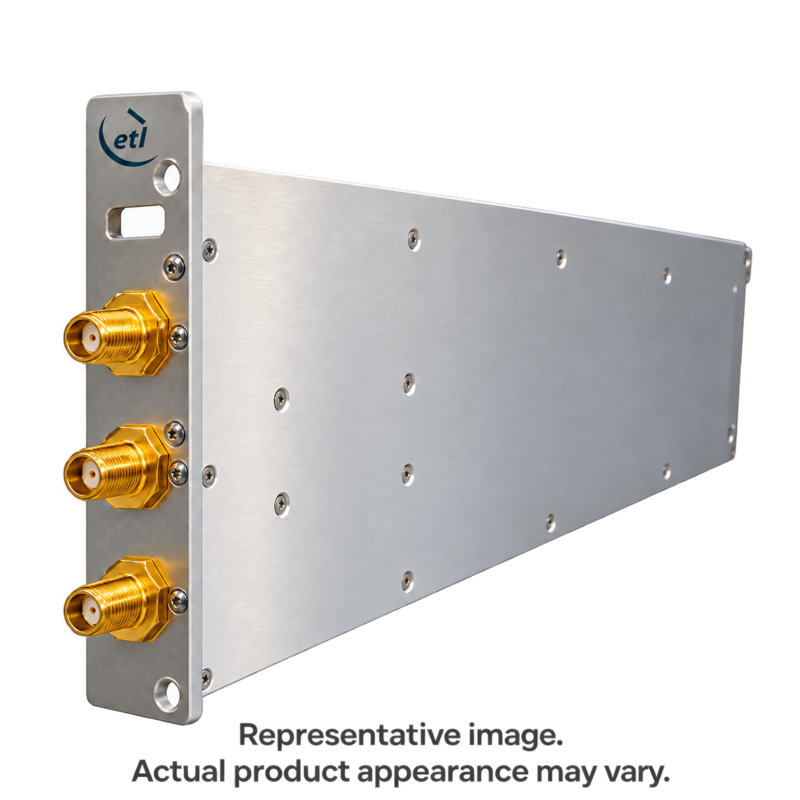

The ETL Systems Swift SWF-G1R-S5-105 is a solid-state RF switch module for GENUS redundant backplane systems, supporting two active channels and one backup module. Operating over 850–3500 MHz, it uses DIN backplane interconnects and provides low insertion loss with high isolation between signal paths. Local and remote control are available through the compatible GNR redundant backplane parent chassis.

Frequency Range: 850–3500 MHz
Redundancy Configuration: 2+1; two active channels and one backup module
Switch Technology: Solid state
Backplane Connection: DIN interconnects
RF Ports: SMA or BNC 50 Ω; BNC or F-type 75 Ω
DC Blocking: All RF input and output ports
Insertion Loss: 0 dB ±0.5 dB
Flatness: ±0.5 dB across the full band; ±0.2 dB over any 36 MHz
Return Loss: 17 dB typ.; 14 dB minimum
Isolation: 55 dB minimum between any two paths
Input RF Power: +16 dBm
Module Supply: 12 VDC
Control & Monitoring: Local and remote through the parent chassis
Operating Temperature: 0°C to +45°C
Dimensions: 256 × 42 × 22 mm maximum
Weight: 0.18 kg
Module Finish: Machined aluminium
Chassis Compatibility: GNR redundant backplane parent chassis only

Key Features

• Supports two active channels with one shared backup module

• Solid-state switching with DIN backplane integration

• Low insertion loss and 55 dB minimum path isolation

• Available with 50 Ω or 75 Ω RF connector options

• Local and remote control through the parent chassis

Requires a compatible GNR redundant backplane chassis. Specifications are preliminary, and a minimum order quantity applies. Please confirm the frequency range, connector configuration and order requirements when requesting a quotation.
