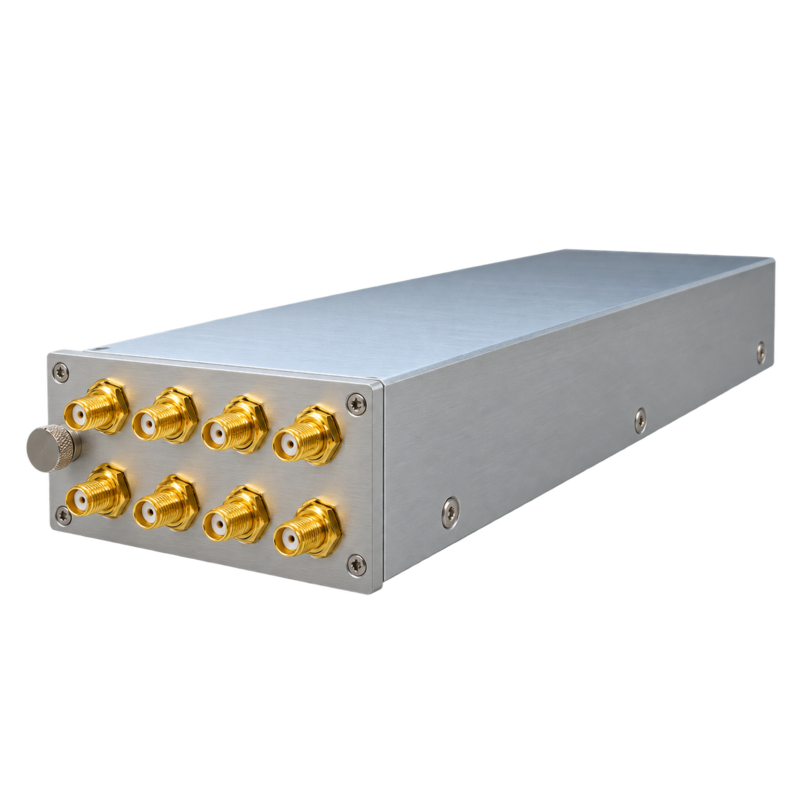

ETL Systems Swift SWF-G1S-CX-111A 1+1 DC–6 GHz RF Redundancy Switch Module

ETL Systems Swift SWF-G1S-CX-111A 1+1 DC–6 GHz RF Redundancy Switch Module

The ETL Systems Swift SWF-G1S-CX-111A provides 1+1 redundancy switching for Falcon frequency converters in a compatible 1U GENUS chassis. Covering DC–6 GHz on both input and output paths, the module supports active and standby converter configurations with low insertion loss and high path isolation. Its hot-swappable design allows module replacement, with local and remote control available through the parent chassis.

Frequency Range: DC–6 GHz on input and output paths
Redundancy Configuration: 1+1, active and standby
Insertion Loss: ≤0.5 dB up to 4 GHz; ≤1.0 dB above 4 GHz to 6 GHz
Insertion Loss Variation: ±0.5 dB maximum between input paths or output paths
Gain Flatness: ±0.5 dB up to 2.15 GHz; ±1.0 dB up to 6 GHz
Return Loss: 16 dB up to 2.5 GHz; 14 dB above 2.5 GHz to 6 GHz
Isolation: 70 dB minimum, path to path
Input Power: Up to +35 dBm
Control & Monitoring: Through the parent chassis HMI and Ethernet interface with web browser and SNMP
Module Width: Four chassis slots
Operating Temperature: 0°C to +45°C
Installation: Indoor use within a compatible 1U GENUS chassis
Application: Falcon frequency converter redundancy

Key Features

• 1+1 redundancy for active and standby frequency converters

• DC–6 GHz coverage on both input and output paths

• Low insertion loss with 70 dB minimum path isolation

• Hot-swappable, field-replaceable switch module

• Local touchscreen and remote monitoring through the parent chassis

Requires a compatible 1U GENUS chassis and Falcon converter configuration. Insertion-loss specifications exclude external linking cables; performance may vary in an integrated converter redundancy system.
