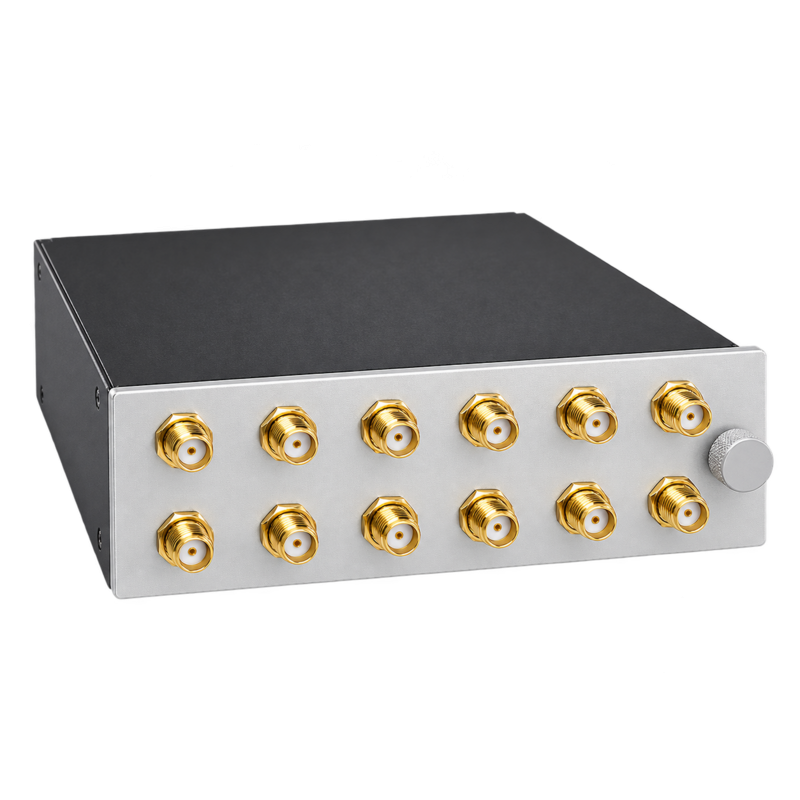

The ETL Systems Swift SWF-G1S-CX-117 provides 2+1 redundancy switching for Falcon frequency converters in a compatible 1U GENUS chassis. Covering DC–6 GHz on both input and output paths, it supports two active converters with one shared backup converter. The hot-swappable switch module occupies four chassis slots, with local and remote control available through the parent chassis.

Frequency Range: DC–6 GHz on input and output paths
Redundancy Configuration: 2+1; two active converters and one backup converter
System Configuration: One redundancy switch and three converter modules
Insertion Loss: ≤2.5 dB up to 2.5 GHz; ≤3.0 dB above 2.5 GHz to 6 GHz
Insertion Loss Variation: ±0.55 dB maximum
Gain Flatness: ±1.0 dB up to 2.15 GHz; ±1.5 dB up to 6 GHz
Return Loss: 16 dB up to 2.5 GHz; 14 dB above 2.5 GHz to 6 GHz
Isolation: 55 dB minimum, path to path
Input Power: Up to +35 dBm
Control & Monitoring: Through the parent chassis HMI and Ethernet interface with web browser and SNMP
Module Width: Four chassis slots
Operating Temperature: 0°C to +45°C
Installation: Indoor use within a compatible 1U GENUS chassis
Application: Falcon frequency converter redundancy

Key Features

• Two active frequency converters with one shared backup converter

• DC–6 GHz coverage on both input and output paths

• Compact four-slot switch module

• 55 dB minimum path isolation

• Hot-swappable, field-replaceable module

• Local touchscreen and remote monitoring through the parent chassis

Requires a compatible 1U GENUS chassis and Falcon converter configuration. Specifications apply to the standalone switch module; performance may vary in an integrated converter redundancy system.
