ETL Systems Swift SWF-G1S-CX-202 1×2 DC–6 GHz SPDT RF Switch Module

ETL Systems Swift SWF-G1S-CX-202 1×2 DC–6 GHz SPDT RF Switch Module

The ETL Systems Swift SWF-G1S-CX-202 provides 1×2 SPDT RF switching over DC–6 GHz in a compatible 1U GENUS chassis. This hot-swappable coaxial switch module combines low insertion loss, high isolation and a 15 ms switchover time. It uses reflective unselected ports and break-before-make switching, with control available through the parent chassis. The module does not provide RF detection or RF signal monitoring.

Frequency Range: DC–6 GHz
Switch Configuration: 1×2 SPDT
RF Ports: SMA, 50 Ω
Unselected Port Behaviour: Reflective
Insertion Loss: 0.2 dB maximum at DC–3 GHz; 0.3 dB maximum at 3–6 GHz
Return Loss: 20 dB minimum at DC–3 GHz; 17 dB minimum at 3–6 GHz
Isolation: 80 dB minimum at DC–3 GHz; 70 dB minimum at 3–6 GHz
Maximum Average Through Power: 250 W at DC–3 GHz; 170 W at 3–6 GHz, through the selected path
Switchover Time: 15 ms
Switch Action: Break before make
Switch Life: 10,000,000 cycles minimum per position
RF Detection & Monitoring: Not provided
Control: Through the parent chassis HMI and Ethernet interface with web browser and SNMP
Module Width: Two chassis slots
Operating Temperature: 0°C to +50°C
Dimensions: 250 × 42 × 42 mm
Module Finish: Machined aluminium

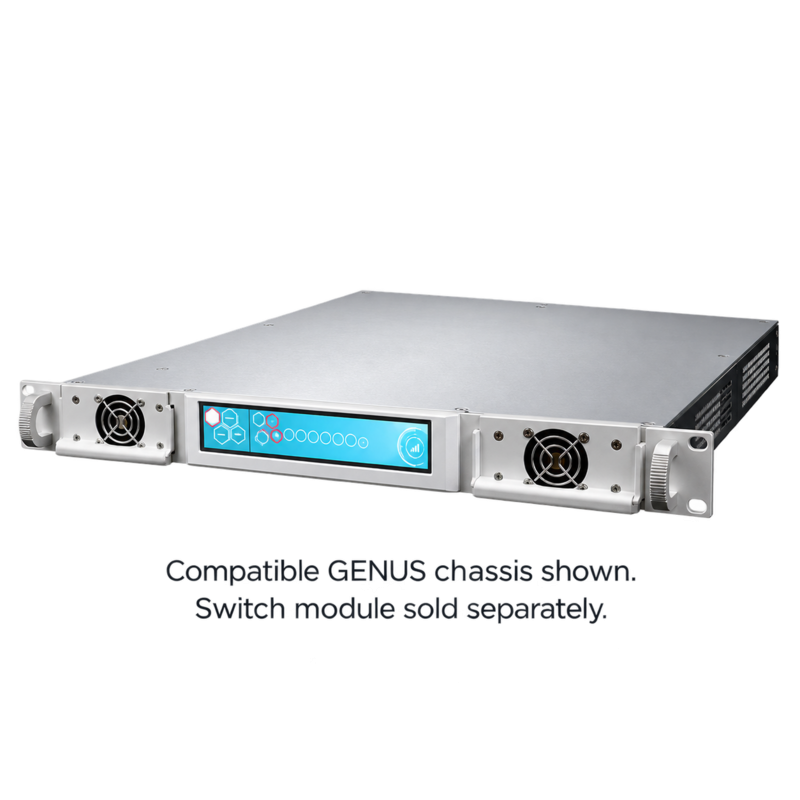

Installation: Indoor use within a compatible 1U GENUS chassis

Key Features

• DC–6 GHz SPDT RF signal switching

• Low insertion loss across both frequency bands

• Up to 80 dB minimum isolation, depending on frequency

• 15 ms break-before-make switching

• Hot-swappable module occupying two chassis slots

• Local and remote control through the parent chassis

Requires a compatible 1U GENUS chassis. Specifications are preliminary, and a minimum order quantity applies. Please confirm configuration and order requirements when requesting a quotation.
