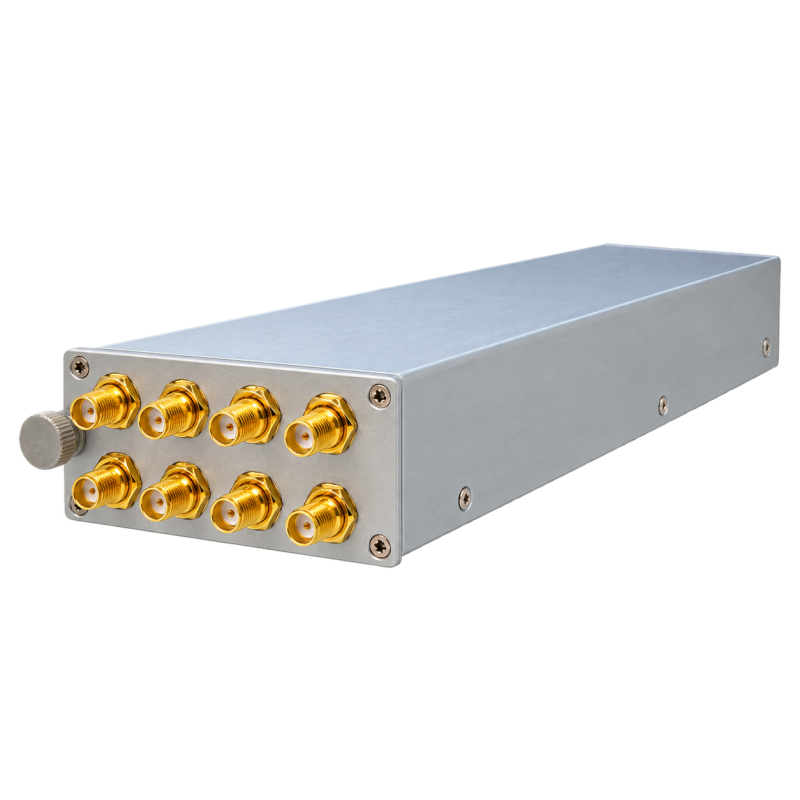

ETL Systems Swift SWF-G2S-KX-131 1+1 DC–18 GHz RF Redundancy Switch Module

ETL Systems Swift SWF-G2S-KX-131 1+1 DC–18 GHz RF Redundancy Switch Module

The ETL Systems Swift SWF-G2S-KX-131 provides 1+1 RF redundancy switching over DC–18 GHz in a compatible GENUS 2U chassis. Supporting active and standby frequency converter configurations, this hot-swappable module occupies six chassis slots and combines low insertion loss with 55 dB minimum path isolation. Local touchscreen control and remote Ethernet operation are available through the parent chassis.

Frequency Range: DC–18 GHz
Redundancy Configuration: 1+1; one active converter and one standby converter
Channel Capacity: Two channels, input/output
System Configuration: One redundancy switch and two converter modules
Insertion Loss: ≤0.8 dB up to 6 GHz; ≤1.0 dB above 6 GHz to 10 GHz; ≤1.1 dB above 10 GHz to 14 GHz; ≤1.3 dB above 14 GHz to 18 GHz
Insertion Loss Variation: ±0.50 dB maximum between input paths or output paths
Gain Flatness: ±1.0 dB
Return Loss: 16 dB up to 2.5 GHz; 14 dB above 2.5 GHz to 10.7 GHz; 12 dB above 10.7 GHz to 18 GHz
Isolation: 55 dB minimum, path to path
Input Power: Up to +35 dBm
In-Band Spurs: Non-carrier-related, <−85 dBm in a 1 kHz bandwidth
Control & Monitoring: Through the parent chassis HMI and RJ45 Ethernet interface with web browser and SNMP
Secure Protocols: SNMPv3 and HTTPS through the parent chassis
Module Width: Six chassis slots
Operating Temperature: 0°C to +45°C
Installation: Indoor use within a compatible GENUS 2U chassis

Key Features

• 1+1 redundancy for active and standby signal paths

• Wideband RF coverage from DC to 18 GHz

• Insertion loss of ≤1.3 dB across the full frequency range

• 55 dB minimum path isolation

• Hot-swappable, field-replaceable switch module

• Local touchscreen and remote Ethernet control through the parent chassis

Requires a compatible GENUS 2U chassis. Specifications apply to the standalone module; performance may vary in an integrated frequency converter redundancy system.
