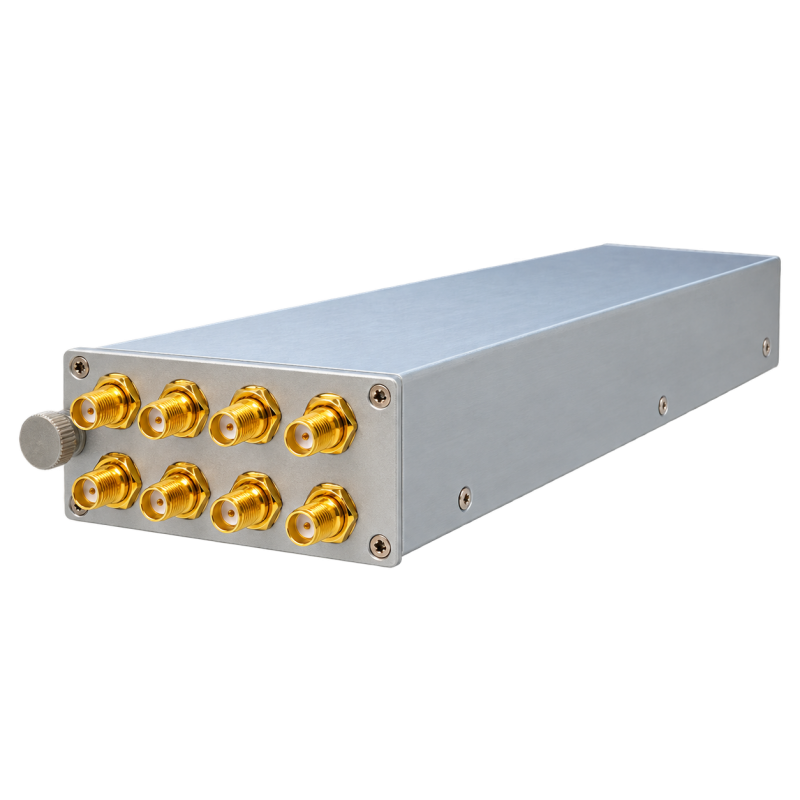

ETL Systems Swift SWF-G1S-QX-108A 1+1 DC–40 GHz RF Redundancy Switch Module

ETL Systems Swift SWF-G1S-QX-108A 1+1 DC–40 GHz RF Redundancy Switch Module

The ETL Systems Swift SWF-G1S-QX-108A provides 1+1 redundancy switching for Falcon frequency converters in a compatible 1U GENUS chassis, with a DC–40 GHz path and a DC–6 GHz path. Supporting one active converter and one standby converter, this hot-swappable module offers low insertion loss, 55 dB minimum path isolation and local or remote control through the parent chassis.

Frequency Range: DC–40 GHz on one path; DC–6 GHz on the other
Redundancy Configuration: 1+1; one active converter and one standby converter
System Configuration: One redundancy switch and two converter modules
Insertion Loss, 40 GHz Path: ≤1.0 dB up to 2.5 GHz; ≤1.5 dB above 2.5 GHz to 12.75 GHz; ≤2.0 dB above 12.75 GHz to 31 GHz
Insertion Loss, 6 GHz Path: ≤0.8 dB up to 2.5 GHz; ≤1.2 dB above 2.5 GHz to 6 GHz
Insertion Loss Variation: ±0.50 dB maximum between input paths or output paths
Gain Flatness: ±0.2 dB across 850–2150 MHz; ±0.35 dB across 10.70–12.75 GHz; ±0.5 dB across 29.25–31.00 GHz
Return Loss: 18 dB across 850–2150 MHz; 14 dB above 2.15 GHz to 10.7 GHz; 12 dB across 29.25–31.00 GHz
Isolation: 55 dB minimum, path to path
Input Power: Up to +35 dBm
In-Band Spurs: Non-carrier-related, <−85 dBm in a 1 kHz bandwidth
Control & Monitoring: Through the parent chassis HMI and RJ45 Ethernet interface with web browser and SNMP
Module Width: Six chassis slots, subject to manufacturer confirmation
Operating Temperature: 0°C to +45°C
Installation: Indoor use within a compatible 1U GENUS chassis
Application: Falcon frequency converter redundancy

Key Features

• 1+1 redundancy for active and standby frequency converters

• DC–40 GHz and DC–6 GHz signal paths

• 55 dB minimum path isolation

• Tight gain flatness across specified L-, Ku- and Ka-band ranges

• Hot-swappable, field-replaceable switch module

• Local touchscreen and remote Ethernet control through the parent chassis

Requires a compatible 1U GENUS chassis and Falcon converter configuration. Insertion-loss specifications exclude external linking cables. Specifications apply to the standalone module; performance may vary in an integrated converter redundancy system.
