ETL Systems Swift SWF-G1S-QX-205 1×2 / 2×1 DC–40 GHz SPDT RF Switch Module

ETL Systems Swift SWF-G1S-QX-205 1×2 / 2×1 DC–40 GHz SPDT RF Switch Module

The ETL Systems Swift SWF-G1S-QX-205 provides bidirectional SPDT RF switching over DC–40 GHz, supporting either 1×2 signal routing or 2×1 signal selection. This hot-swappable GENUS module occupies two chassis slots and offers low insertion loss with a 15 ms maximum switchover time. Unselected ports are reflective and open, with local and remote control available through the parent chassis.

Frequency Range: DC–40 GHz
Switch Configuration: 1×2 SPDT or 2×1; bidirectional
RF Ports: 50 Ω; SMA as listed in the datasheet, subject to manufacturer confirmation
Unselected Port Behaviour: Reflective, open
Insertion Loss, Maximum: 0.3 dB at DC–6 GHz; 0.4 dB at 6–12.4 GHz; 0.5 dB at 12.4–18 GHz; 0.7 dB at 18–26.5 GHz; 0.8 dB at 26.5–40 GHz
Return Loss, Minimum: 17 dB at DC–6 GHz; 15 dB at 6–12.4 GHz; 13 dB at 12.4–18 GHz; 11 dB at 18–26.5 GHz; 10 dB at 26.5–40 GHz
Isolation, Minimum: 70 dB at DC–6 GHz; 60 dB at 6–12.4 GHz; 60 dB at 12.4–18 GHz; 55 dB at 18–26.5 GHz; 50 dB at 26.5–40 GHz
Maximum Average Through Power: 85 W at DC–6 GHz; 60 W at 6–12.4 GHz; 50 W at 12.4–18 GHz; 20 W at 18–26.5 GHz; 10 W at 26.5–40 GHz, through the selected path, assuming a worst-case load VSWR of 2:1
Switchover Time: 15 ms maximum
Switch Life: 10,000,000 cycles minimum
Control: Through the parent chassis HMI and RJ45 Ethernet interface with web browser and SNMP
Module Width: Two chassis slots

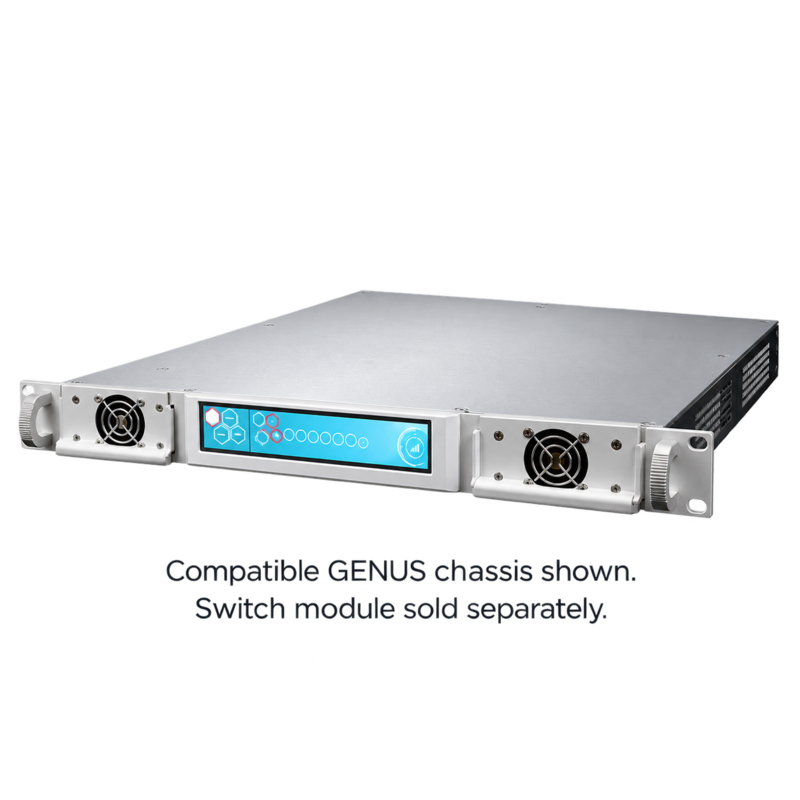

Chassis Compatibility: GENUS 1U or compatible 4-slot and 8-slot bench chassis
Operating Temperature: 0°C to +50°C
Dimensions: 250 × 42 × 42 mm
Weight: Less than 250 g
Module Finish: Machined aluminium
Installation: Indoor use within a compatible GENUS chassis

Key Features

• Bidirectional 1×2 routing or 2×1 signal selection

• Wideband RF coverage from DC to 40 GHz

• Insertion loss of 0.8 dB maximum across the full frequency range

• Up to 70 dB minimum isolation, depending on frequency

• 15 ms maximum switchover time

• Hot-swappable module occupying two chassis slots

• Local touchscreen and remote Ethernet control through the parent chassis

Requires a compatible GENUS chassis. Specifications are preliminary, and a minimum order quantity applies. Please confirm the RF connector type, configuration and order requirements when requesting a quotation.
