ETL Systems CST-POE-SW02-1059 2-Way Broadband PoE Smart RF Switch

ETL Systems CST-POE-SW02-1059 2-Way Broadband PoE Smart RF Switch

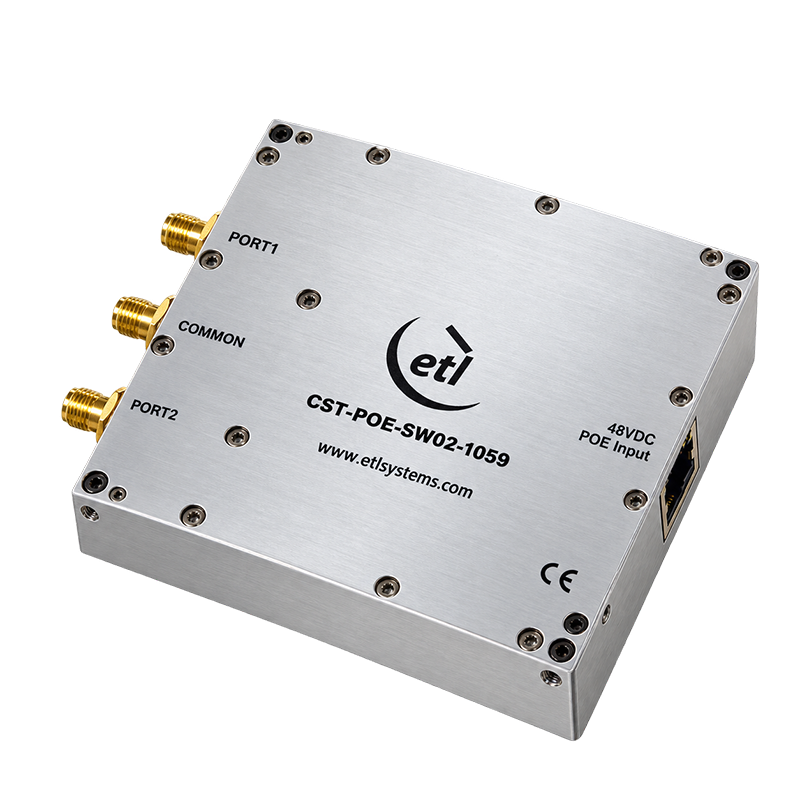

The ETL Systems CST-POE-SW02-1059 is a two-way broadband smart RF switch covering 100–3000 MHz, supporting either 1×2 signal routing or 2×1 signal selection. Its compact enclosure receives power and remote control through an RJ45 Ethernet port, with web browser, SNMP and TCP/IP control and an LED indicating the selected switch path.

Frequency Range: 100–3000 MHz
Switch Configuration: 1×2 or 2×1
Impedance: 50 Ω
RF Connector Options: SMA or BNC; specify when requesting a quotation
Insertion Loss, Maximum: 1.8 dB at 100 MHz; 2.6 dB at 1500 MHz; 3.5 dB at 3000 MHz
Return Loss, Minimum: 14 dB across 100–2150 MHz; 8 dB across 2150–3000 MHz
Isolation: 65 dB input-to-output; 70 dB input-to-input
In-Band Spurious: <−95 dBm maximum; <−105 dBm typ.
Out-of-Band Spurious: <−80 dBm maximum across 100 kHz–6 GHz
Maximum RF Input Power: +10 dBm (10 mW)
Power Supply: IEEE 802.3af-compliant PoE, 44–57 V
Power Consumption: 6 W maximum
Remote Control: RJ45 Ethernet with web browser, SNMP and TCP/IP
Status Indicator: LED showing the selected switch path
Mounting Options: Through-hole mounting or tapped holes for chassis mounting
Operating Temperature: 0°C to +45°C
Installation: Indoor use only

Key Features

• Two-way RF switching across 100–3000 MHz

• Supports 1×2 routing or 2×1 signal selection

• Power and remote control through one Ethernet connection

• Web browser, SNMP and TCP/IP control

• LED indication of the selected signal path

• Compact, rugged enclosure with mounting options

Requires an IEEE 802.3af-compatible PoE power source. Please specify the RF connector type when requesting a quotation.
