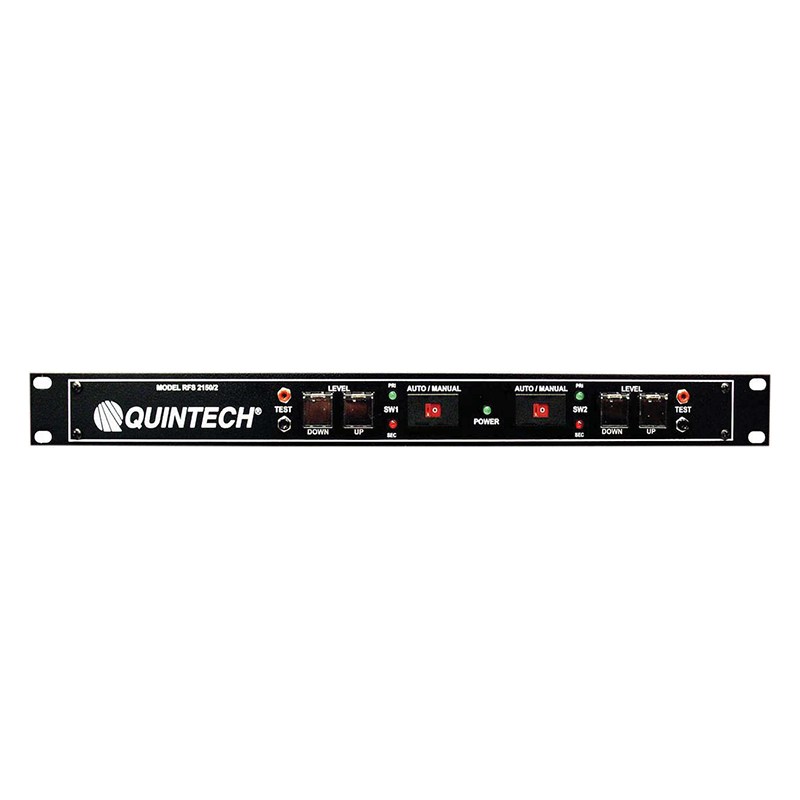

Quintech RFS21502FAA000 950-2150 MHz Dual 2x1 RF Sensing Switch

Quintech RFS21502FAA000 950-2150 MHz Dual 2x1 RF Sensing Switch

The Quintech RFS21502FAA000 (RFS 2150/2) is a dual 2×1 RF sensing and redundancy switch designed to monitor primary L-band signals and automatically switch to backup inputs when primary signals are lost. Two independent switching channels operate from 950 to 2150 MHz, with each channel providing primary and secondary RF inputs and one switched output.

Each channel filters, amplifies and detects the primary RF signal. When the signal remains above the adjustable threshold, the primary input is selected. If the level falls below the threshold, the switch automatically selects the secondary input. Front-panel pushbuttons allow threshold adjustment from -60 to -20 dBm, while LEDs provide clear primary and secondary status indication.

The RFS21502FAA000 also supports front-panel manual override, remote override through Form C contact closure and relay contact alarm outputs. Nonvolatile memory retains the most recent threshold setting after a power interruption. In a no-power condition, the unit defaults to the primary signal path.

The standard unit does not pass DC voltage or provide LNB power; LNB powering is optional.

Specifications:

Product Type: Dual RF Sensing and Redundancy Switch
Configuration: Two Independent 2×1 RF Switches
Manufacturer: Quintech Electronics
Product Series: RFS 2150/2
Part Number: RFS21502FAA000
Frequency Range: 950-2150 MHz
Inputs/Outputs: Two inputs and one output per switch
Input Selection: Primary or secondary
Impedance: 75 ohms
Detection Threshold: -60 to -20 dBm, adjustable
RF Switching Response Time: 1.1 seconds maximum
Insertion Loss: 2.5 ± 1 dB
Frequency Response: ±1 dB
Input Return Loss: 12 dB
Output Return Loss: 12 dB
Isolation: 40 dB
Off-Path Termination: 75 ohms
Manual Override: Front-panel slide switch
Remote Override: Form C contact closure
Threshold Adjustment: Front-panel up/down pushbuttons
Alarm Outputs: Relay contact closure
Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption: 21 W, excluding optional LNB power
RF Connectors: Type F, 75 ohms
DC and LNB Power: Not provided as standard; LNB power optional
Fail-Safe Position: Primary input
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Net Weight: 4.6 lb.
Gross Boxed Weight: 7.2 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
