Quintech LS042150A2FSA000 Dual 4-Way Active L-Band Splitter with Internal Power Redundancy

Quintech LS042150A2FSA000 Dual 4-Way Active L-Band Splitter with Internal Power Redundancy

The Quintech LS042150A2FSA000 (LS4 2150A/2 AIR) is a commercial-quality dual 4-way active L-band splitter with internal power redundancy. Operating from 950 to 2150 MHz, it contains two independent 1×4 splitter channels that distribute two RF input signals across a total of eight RF outputs.

Its active zero-loss design eliminates the need for external distribution amplifiers, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. Internal redundant power circuitry helps maintain reliable operation in critical satellite and RF distribution systems.

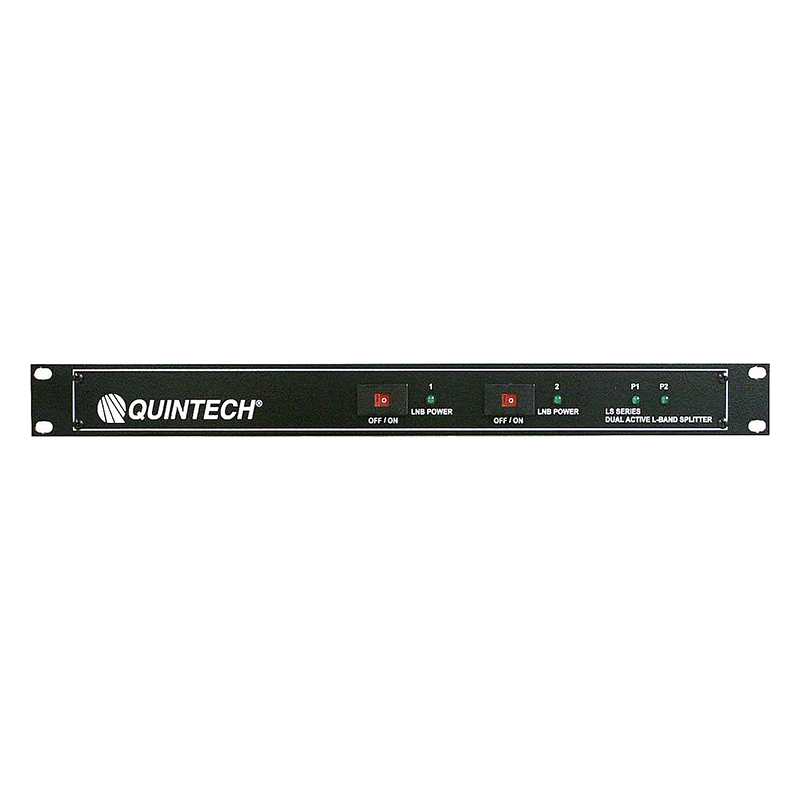

The LS042150A2FSA000 also provides switchable 24 VDC LNB power insertion controlled by front-panel switches, with LEDs indicating LNB power and internal power-supply status.

All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: Dual 4-Way Active L-Band Splitter
Configuration: Two Independent 1×4 Splitters
Manufacturer: Quintech Electronics
Product Series: LS4 2150A/2 AIR
Part Number: LS042150A2FSA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: +3 dBm
OIP3: +17.5 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 15 dB
Noise Figure: 9 dB
RF Connectors: Type F, 75 ohms
Power Configuration: Internal power redundancy
AC Power Requirements: 100-240 VAC, 50/60 Hz
LNB Power: 24 VDC, 750 mA maximum
LNB Power Control: Front-panel on/off switches
Power Consumption: 16 W plus connected LNB load
Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing
Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Net Weight: 4.6 lb.
Gross Boxed Weight: 7.2 lb.
Certification: CE
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
