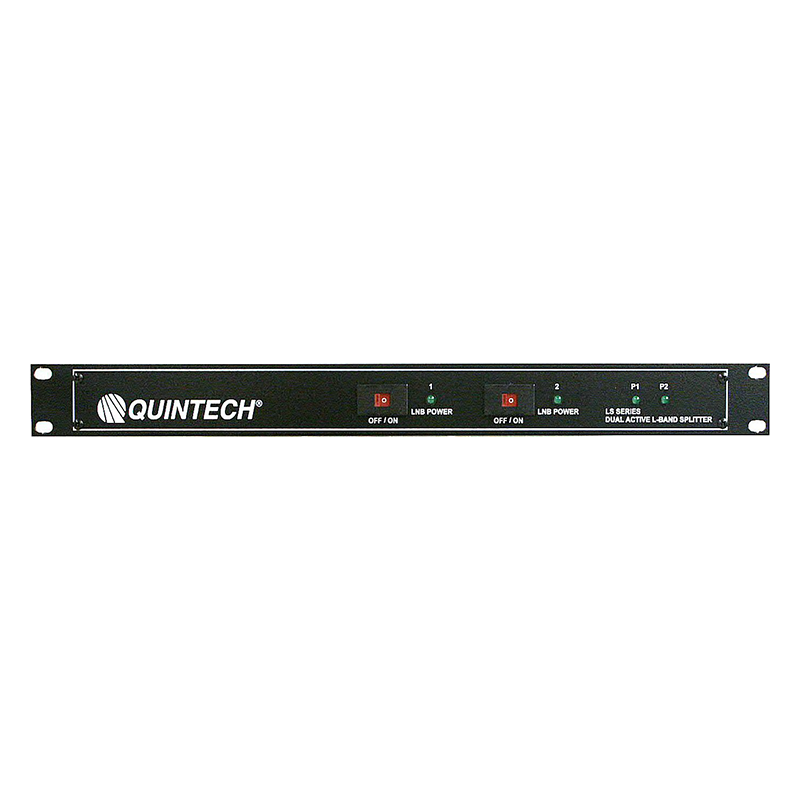

The Quintech LS042150A2FTA000 (LS4 2150A DR) is a commercial-quality dual 4-way active L-band splitter with dual power redundancy. Operating from 950 to 2150 MHz, it contains two independent 1×4 splitter channels that distribute two RF input signals across a total of eight RF outputs.

Its active zero-loss design eliminates the need for external distribution amplifiers, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. The dual-redundant power architecture includes two AC power inputs to support reliable operation in critical satellite and RF distribution systems.

The LS042150A2FTA000 also provides switchable 24 VDC LNB power insertion controlled by separate front-panel switches. LEDs indicate LNB power and internal power-supply status.

All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: Dual 4-Way Active L-Band Splitter
Configuration: Two Independent 1×4 Splitters
Manufacturer: Quintech Electronics
Product Series: LS4 2150A DR
Part Number: LS042150A2FTA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: +3 dBm
OIP3: +17.5 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 15 dB
Noise Figure: 9 dB
RF Connectors: Type F, 75 ohms
Power Configuration: Dual-redundant power architecture
AC Power Inputs: Two
AC Power Requirements: 100-240 VAC, 50/60 Hz
LNB Power: 24 VDC, 750 mA maximum
LNB Power Control: Front-panel on/off switches
Power Consumption: 17 W plus connected LNB load
Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing
Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Net Weight: 5 lb.
Gross Boxed Weight: 7 lb.
