Quintech LS042150A2FPA000 950-2150 MHz Dual 4-Way Active L-Band Splitter

Quintech LS042150A2FPA000 950-2150 MHz Dual 4-Way Active L-Band Splitter

The Quintech LS042150A2FPA000 (LS4 2150A/2) is a commercial-quality, AC-powered dual 4-way active L-band splitter operating from 950 to 2150 MHz. It contains two independent 1×4 splitter channels that distribute two RF input signals across a total of eight RF outputs.

Its active zero-loss design eliminates the need for external distribution amplifiers, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. The internal universal AC power supply accepts 100-240 VAC for convenient deployment in international satellite and RF distribution systems.

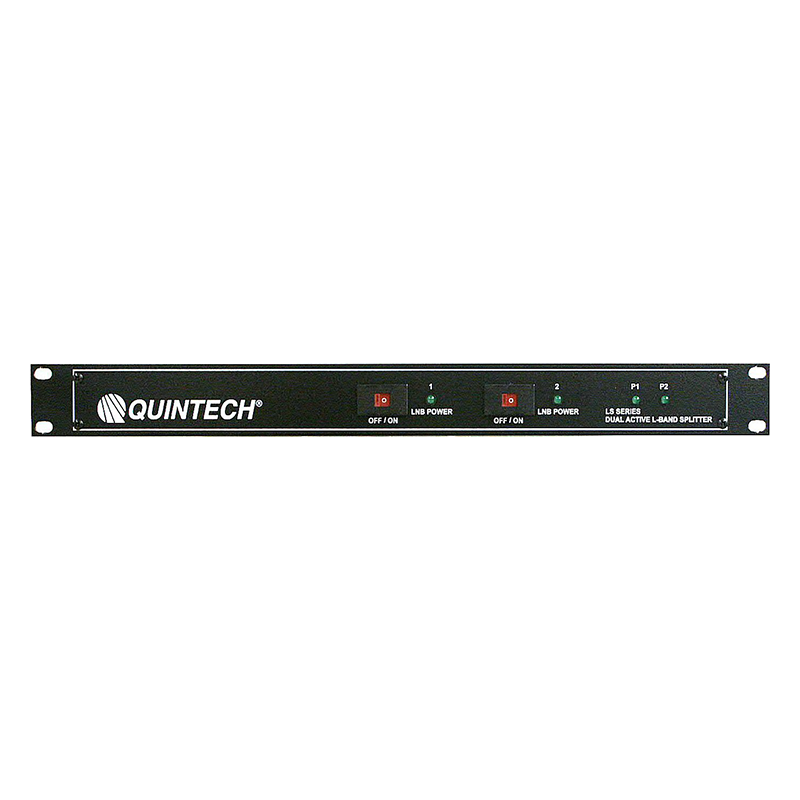

The LS042150A2FPA000 also provides switchable 24 VDC LNB power insertion controlled by separate front-panel switches. LEDs indicate the LNB power status of each channel and the operating status of the unit.

All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: Dual 4-Way Active L-Band Splitter
Configuration: Two Independent 1×4 Splitters
Manufacturer: Quintech Electronics
Product Series: LS4 2150A/2
Part Number: LS042150A2FPA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: +3 dBm
OIP3: +17.5 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 15 dB
Noise Figure: 9 dB
RF Connectors: Type F, 75 ohms
AC Power Requirements: 100-240 VAC, 50/60 Hz
LNB Power: 24 VDC, 750 mA maximum
LNB Power Control: Front-panel on/off switches
Power Consumption: 10 W plus connected LNB load
Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing
Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Net Weight: 4.6 lb.
Gross Boxed Weight: 7.2 lb.
Certification: CE
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
