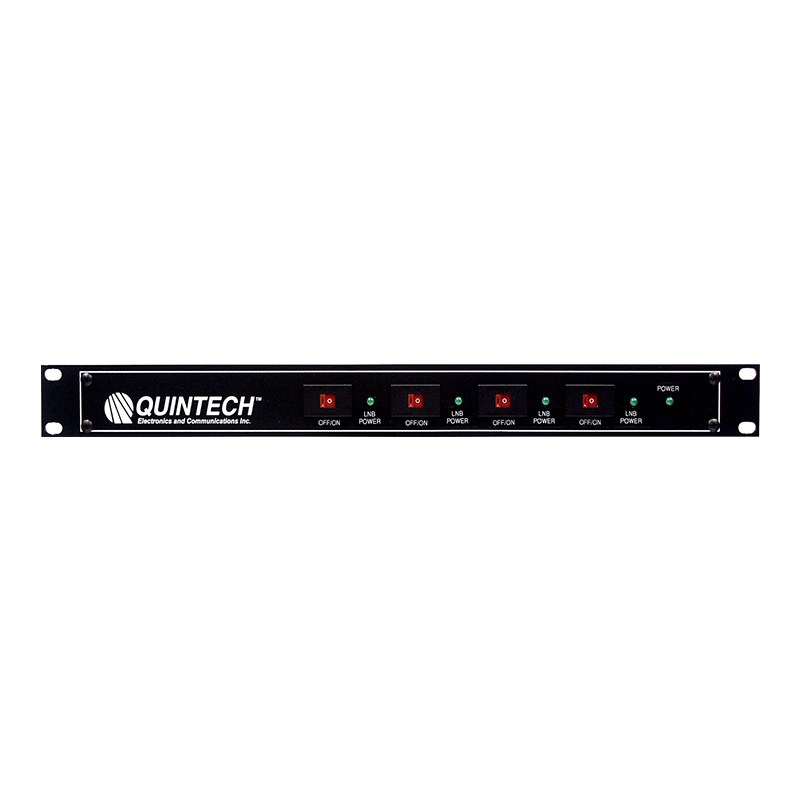

Quintech LS042150A4BVA000 Quad 4-Way Active L-Band Splitter with 75-Ohm BNC Connectors
The Quintech LS042150A4BVA000 (LS4 2150A/4) is a commercial-quality quad 4-way active L-band splitter with 75-ohm BNC connectors. Operating from 950 to 2150 MHz, it contains four independent 1×4 splitter channels that distribute four RF input signals across a total of 16 RF outputs.
Its active zero-loss design eliminates the need for external distribution amplifiers, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. The compact 1 RU chassis is ideal for broadcast, satellite, test laboratory and other professional RF systems standardized on 75-ohm BNC connections.
Each input supports switchable 18-24 VDC LNB power insertion controlled by an individual front-panel switch. LEDs indicate the LNB power status of all four channels. All RF outputs are DC blocked.
All unused RF output ports require 75-ohm terminations.
Specifications:
Product Type: Quad 4-Way Active L-Band Splitter
Configuration: Four Independent 1×4 Splitters
Manufacturer: Quintech Electronics
Product Series: LS4 2150A/4
Part Number: LS042150A4BVA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: +3 dBm
OIP3: +17.5 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 12 dB
Output Return Loss: 14 dB
Noise Figure: 9 dB
RF Connectors: BNC, 75 ohms
Power Requirements: 18-24 VDC at 2 A
Power Connection: 2-pin quick-connect barrier strip
LNB Power: 18-24 VDC, 1.7 A maximum
LNB Power Control: Four front-panel on/off switches
RF Outputs: DC blocked
Power Consumption: 7 W at 18 VDC plus connected LNB load
Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing
Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 3.5 lb.
Gross Boxed Weight: 7 lb.
