Quintech LS082150A1BVA000 950-2150 MHz 8-Way Active L-Band Splitter

Quintech LS082150A1BVA000 950-2150 MHz 8-Way Active L-Band Splitter with BNC Connectors

The Quintech LS082150A1BVA000 (LS8 2150A) is a commercial-quality 8-way active L-band splitter with 75-ohm BNC connectors. Operating from 950 to 2150 MHz, it distributes one RF input signal across eight RF outputs.

Its active zero-loss design eliminates the need for an external distribution amplifier, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. The compact 1 RU chassis is ideal for broadcast, satellite, test laboratory and other professional RF systems standardized on 75-ohm BNC connections.

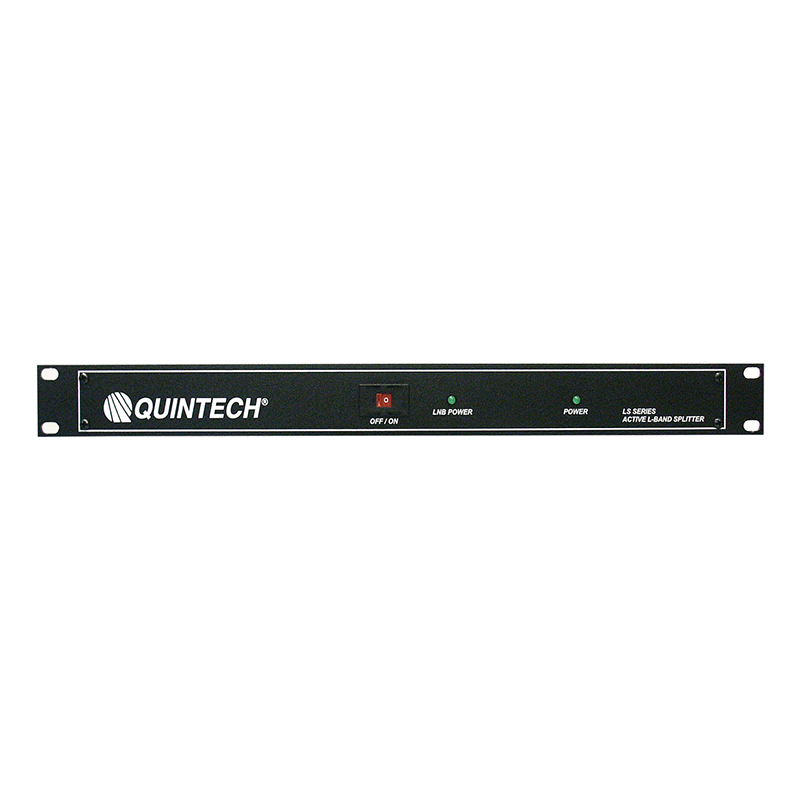

The LS082150A1BVA000 supports switchable 18 VDC LNB power insertion controlled by a front-panel switch. LEDs indicate LNB power and unit operating status. All RF outputs are DC blocked.

All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: 8-Way Active L-Band Splitter
Configuration: One Input and Eight Outputs
Manufacturer: Quintech Electronics
Product Series: LS8 2150A
Part Number: LS082150A1BVA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: -10 dBm
OIP3: 0 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 14 dB
Output Return Loss: 15 dB
Noise Figure: 9 dB
RF Connectors: BNC, 75 ohms
Power Requirements: 18-24 VDC at 1 A
Power Connection: 2-pin quick-connect barrier strip
LNB Power: 18 VDC, 800 mA maximum
LNB Power Control: Front-panel on/off switch
RF Outputs: DC blocked
Power Consumption: 3 W at 18 VDC plus connected LNB load
Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing
Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Boxed Weight: 5 lb.
Certification: CE
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
