Quintech LS082150A1FTA000 950-2150 MHz 8-Way Active L-Band Splitter

Quintech LS082150A1FTA000 950-2150 MHz 8-Way Active L-Band Splitter with Dual Redundancy

The Quintech LS082150A1FTA000 (LS8 2150A DR) is a commercial-quality 8-way active L-band splitter with dual power redundancy. Operating from 950 to 2150 MHz, it distributes one RF input signal across eight RF outputs.

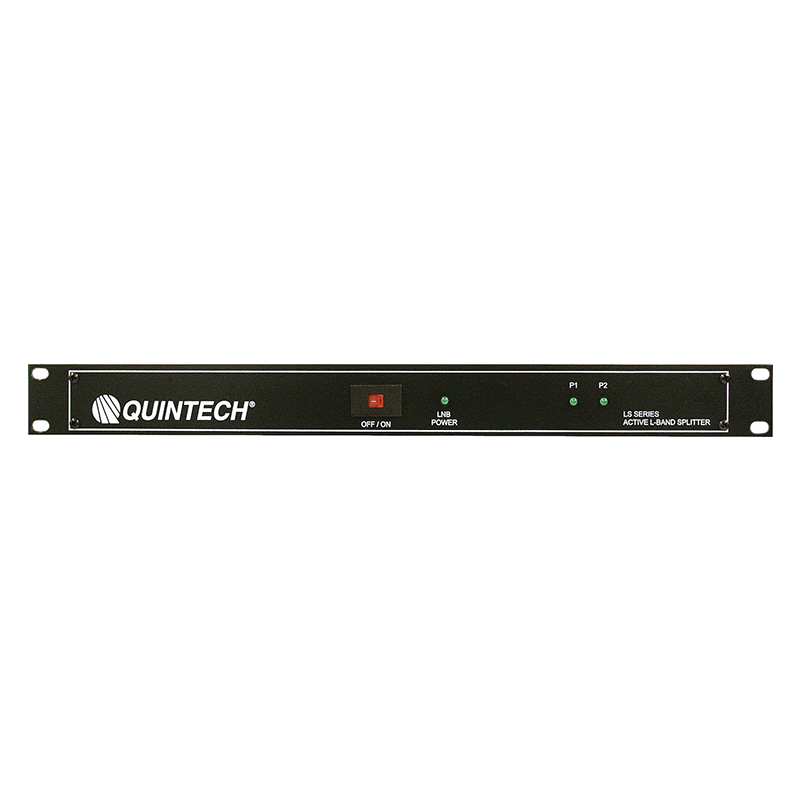

Its active zero-loss design eliminates the need for an external distribution amplifier, while Quintech proprietary microstrip and surface-mount technology provides repeatable RF performance. The dual-redundant power architecture includes two AC power inputs to support reliable operation in critical satellite and RF distribution systems. Front-panel LEDs indicate the status of both internal power supplies.

The LS082150A1FTA000 also provides switchable 24 VDC LNB power insertion controlled by a front-panel switch, with an LED indicating LNB power status.

All unused RF output ports require 75-ohm terminations.

Specifications:

Product Type: 8-Way Active L-Band Splitter
Configuration: One Input and Eight Outputs
Manufacturer: Quintech Electronics
Product Series: LS8 2150A DR
Part Number: LS082150A1FTA000
Frequency Range: 950-2150 MHz
Impedance: 75 ohms
P1dB: 0 dBm
OIP3: 10 dBm
Insertion Loss: 0 ± 2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 16 dB
Noise Figure: 7 dB
RF Connectors: Type F, 75 ohms
Power Configuration: Dual-redundant power architecture
AC Power Inputs: Two
AC Power Requirements: 100-240 VAC, 50/60 Hz
LNB Power: 24 VDC, 800 mA maximum
LNB Power Control: Front-panel on/off switch
Power Consumption: 12 W plus connected LNB load
Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing
Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing
Mechanical: 1 RU rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Net Weight: 5 lb.
Gross Boxed Weight: 7 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
