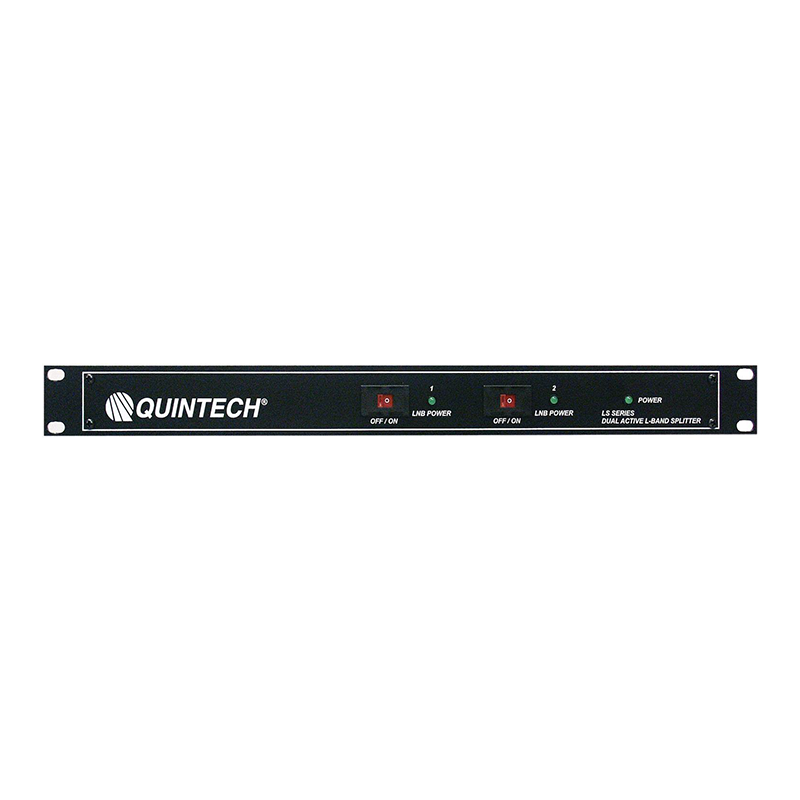

Quintech LS082150A2BVA000 Dual 8-Way Active L-Band Splitter

Quintech LS082150A2BVA000 Dual 8-Way Active L-Band Splitter

The Quintech LS082150A2BVA000 is a dual 8-way active L-band splitter designed to distribute two independent RF inputs to eight outputs each. Operating across the 950–2150 MHz frequency range, it provides zero-loss signal splitting and eliminates the need for external distribution amplifiers.

This 1RU splitter features 75-ohm BNC connectors and switchable 18 VDC LNB power insertion for each input path. All RF outputs are DC blocked. Built with Quintech proprietary microstrip and SMT technology, the LS082150A2BVA000 delivers dependable signal distribution for satellite, broadcast, telecommunications and RF monitoring systems.

Specifications:

Product Type: Dual 8-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS8 2150A/2
Part Number: LS082150A2BVA000
Configuration: Two Independent 1 × 8 Splitters
RF Inputs: 2
RF Outputs: 16
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: 0 dBm
OIP3: 10 dBm
Insertion Loss: 0 ±2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 15 dB
Noise Figure: 7 dB
RF Connectors: 75-Ohm BNC
LNB Power: Switchable 18 VDC, 800 mA Maximum
DC Blocking: All RF Outputs
Power Requirements: 18–24 VDC at 1 A
Power Consumption: 5 W at 18 VDC, Excluding LNB Load
Operating Temperature: 0°C to +50°C
Storage Temperature: −10°C to +70°C
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 3.2 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
