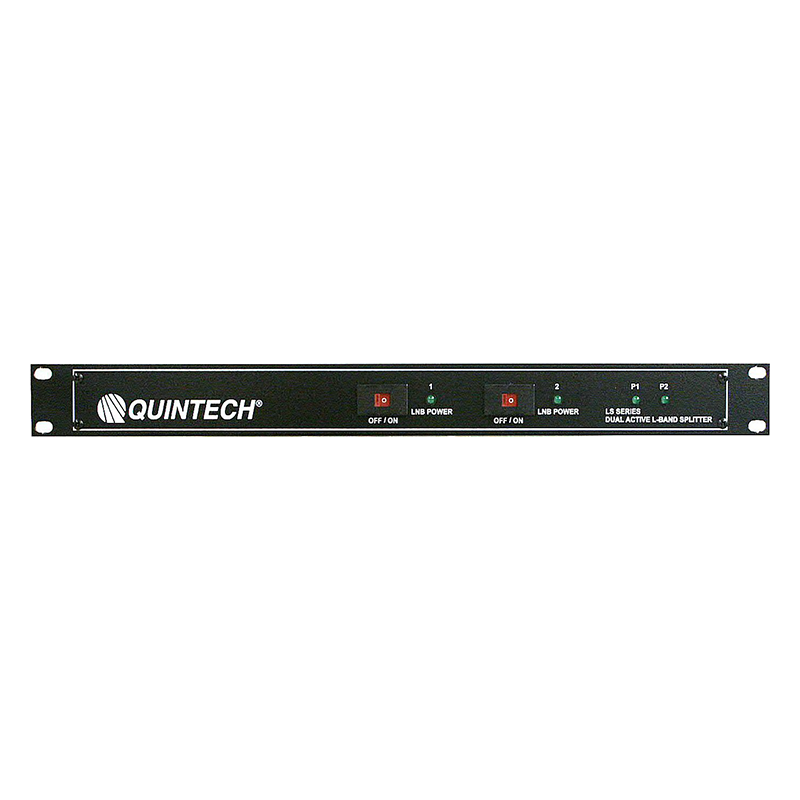

Quintech LS082150A2FTA000 950–2150 MHz Dual 8-Way Active L-Band Splitter

Quintech LS082150A2FTA000 950–2150 MHz Dual 8-Way Active L-Band Splitter with Dual Redundancy

The Quintech LS082150A2FTA000 is a commercial-quality dual 8-way active L-band splitter with dual AC power redundancy. It distributes two independent RF inputs to eight outputs each across the 950–2150 MHz frequency range. Its zero-loss design eliminates the need for external distribution amplifiers.

Built with Quintech proprietary microstrip and SMT technology, the LS082150A2FTA000 delivers consistent signal levels, reliable impedance matching and dependable RF performance. It features 75-ohm Type F connectors and switchable 24 VDC LNB power insertion controlled by front-panel switches. Dual redundant AC inputs help maximize uptime in satellite, broadcast, telecommunications and RF distribution systems.

Specifications:

Product Type: Dual 8-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS8 2150A/2 DR
Part Number: LS082150A2FTA000
Configuration: Two Independent 1 × 8 Splitters
RF Inputs: 2
RF Outputs: 16
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: 0 dBm
OIP3: 10 dBm
Insertion Loss: 0 ±2 dB
Frequency Response: ±1 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 16 dB
Noise Figure: 7 dB
RF Connectors: 75-Ohm Type F
LNB Power: Switchable 24 VDC, 750 mA Maximum
Power Redundancy: Dual AC Inputs
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 20 W, Excluding LNB Load
Operating Temperature: 0°C to +50°C
Storage Temperature: −10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 14 in. D
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
