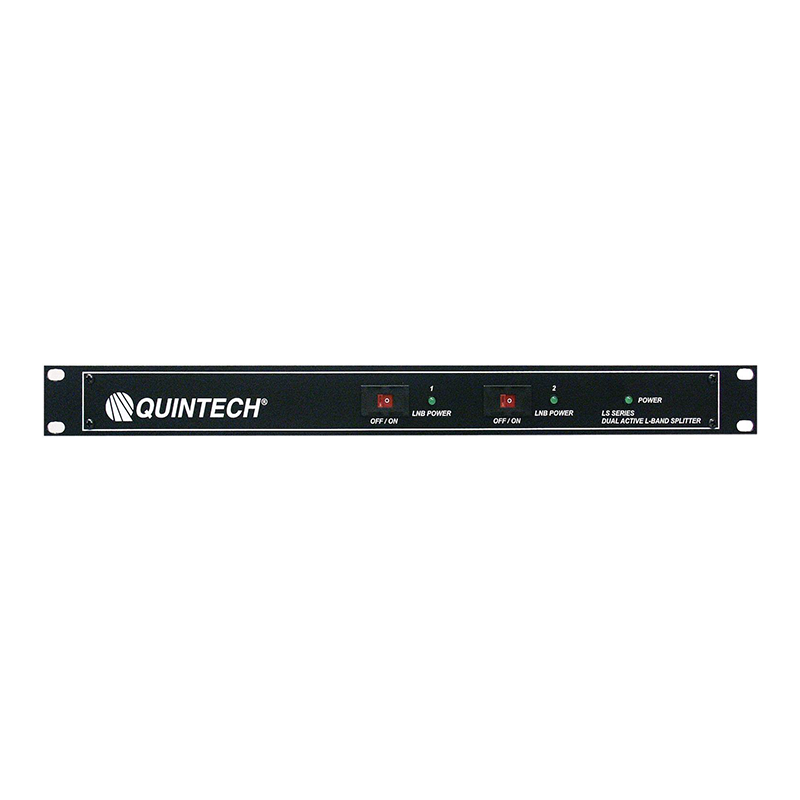

Quintech LS122150A2FVA000 950–2150 MHz Dual 12-Way Active L-Band Splitter

Quintech LS122150A2FVA000 950–2150 MHz Dual 12-Way Active L-Band Splitter

The Quintech LS122150A2FVA000 is a commercial-quality dual 12-way active L-band splitter that distributes two independent RF inputs to 12 outputs each. Operating across the 950–2150 MHz frequency range, its zero-loss design eliminates the need for external distribution amplifiers.

Built with Quintech proprietary microstrip and SMT technology, the LS122150A2FVA000 provides consistent signal levels and dependable impedance matching for satellite, broadcast, telecommunications and RF distribution systems. It features 75-ohm Type F connectors and independently switchable 18 VDC LNB power insertion. All RF outputs are DC blocked.

Specifications:

Product Type: Dual 12-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS12 2150A/2
Part Number: LS122150A2FVA000
Configuration: Two Independent 1 × 12 Splitters
RF Inputs: 2
RF Outputs: 24
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: -5 dBm
OIP3: +6 dBm
Insertion Loss: 0 ±2 dB
Frequency Response: ±2 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 12 dB
Noise Figure: 8 dB
RF Connectors: 75-Ohm Type F
LNB Power: Switchable 18 VDC, 750 mA Maximum
DC Blocking: All RF Outputs
Power Requirements: 18–24 VDC
Power Connection: 2-Pin Quick-Connect Barrier Strip
Power Consumption: 5 W at 18 VDC, Excluding LNB Load
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 3.0 lb.
Gross Weight: 5.5 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
