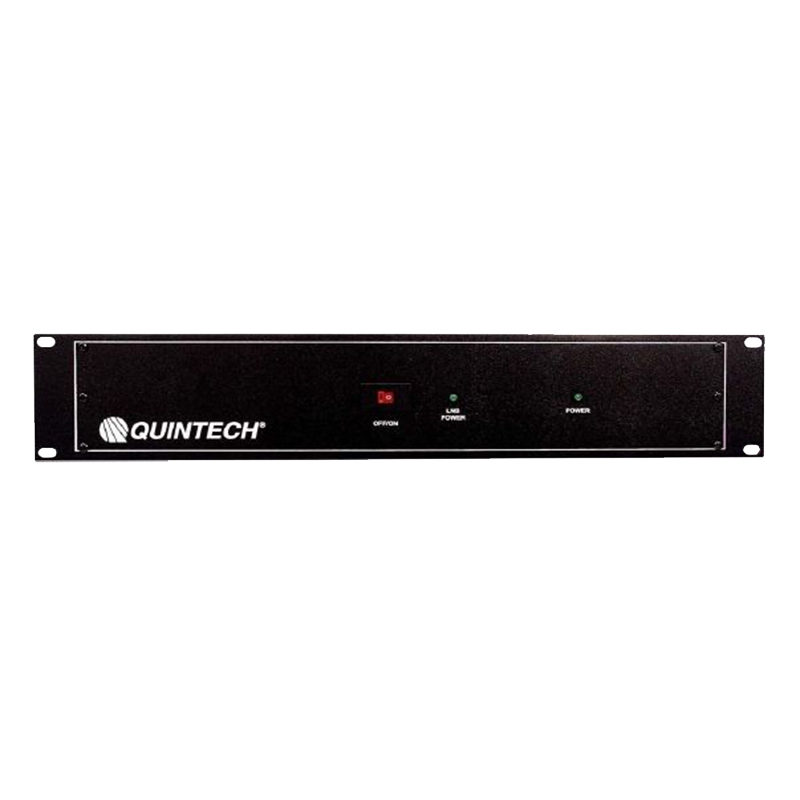

Quintech LS242150A1BVB000 950–2150 MHz 24-Way Active L-Band Splitter

Quintech LS242150A1BVB000 950–2150 MHz 24-Way Active L-Band Splitter

The Quintech LS242150A1BVB000 is a commercial-quality 24-way active L-band splitter that distributes one RF input to 24 outputs across the 950–2150 MHz frequency range. Its zero-loss design eliminates the need for an external distribution amplifier.

Built with Quintech proprietary microstrip and SMT technology, the LS242150A1BVB000 provides consistent signal levels and reliable impedance matching for satellite, broadcast, telecommunications and RF distribution systems. It features 75-ohm BNC connectors and switchable 18 VDC LNB power insertion. All RF outputs are DC blocked.

Specifications:

Product Type: 24-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS24 2150A
Part Number: LS242150A1BVB000
Configuration: 1 × 24
RF Inputs: 1
RF Outputs: 24
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: -10 dBm
OIP3: +3 dBm
Insertion Loss: 0 ±2 dB
Frequency Response: ±2 dB
Isolation: 18 dB
Input Return Loss: 12 dB
Output Return Loss: 12 dB
Noise Figure: 12 dB
RF Connectors: 75-Ohm BNC
LNB Power: Switchable 18 VDC, 800 mA Maximum
DC Blocking: All RF Outputs
Power Requirements: 18–24 VDC at 1 A
Power Connection: 2-Pin Quick-Connect Barrier Strip
Power Consumption: 5 W at 18 VDC, Excluding LNB Load
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 2RU Rackmount
Dimensions: 3.5 in. H × 19 in. W × 14 in. D
Net Weight: 6.5 lb.
Gross Weight: 10.5 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
