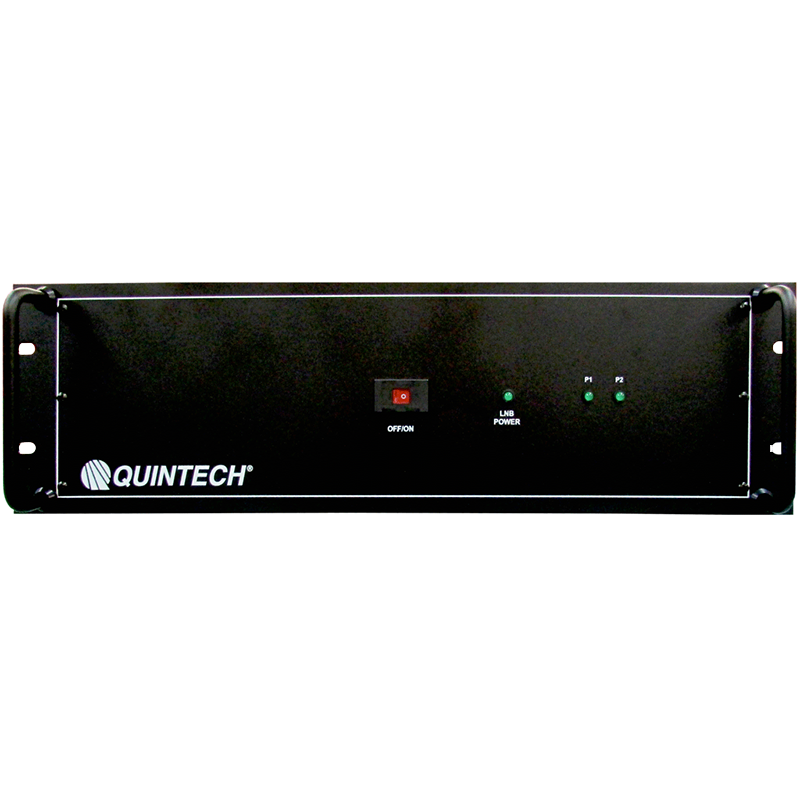

Quintech LS642150A1FTC000 950–2150 MHz 64-Way Active L-Band Splitter

Quintech LS642150A1FTC000 950–2150 MHz 64-Way Active L-Band Splitter with External Power Redundancy

The Quintech LS642150A1FTC000 is a commercial-quality 64-way active L-band splitter with external power redundancy. It distributes one RF input to 64 outputs across the 950–2150 MHz frequency range, while its zero-loss design eliminates the need for an external distribution amplifier.

Built with Quintech proprietary microstrip and SMT technology, the LS642150A1FTC000 provides consistent signal levels and dependable impedance matching for satellite, broadcast, telecommunications and high-density RF distribution systems. It features 75-ohm Type F connectors, switchable 24 VDC LNB power insertion and dual AC power inputs for improved system availability.

Specifications:

Product Type: 64-Way Active L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS64 2150A
Part Number: LS642150A1FTC000
Configuration: 1 × 64
RF Inputs: 1
RF Outputs: 64
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: -10 dBm
Insertion Loss: 0 ±2 dB
Frequency Response: ±2 dB
Isolation: 18 dB
Input Return Loss: 12 dB
Output Return Loss: 12 dB
Noise Figure: 11 dB
RF Connectors: 75-Ohm Type F
LNB Power: Switchable 24 VDC, 700 mA Maximum
Power Redundancy: Dual External AC Power Inputs
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 25 W, Excluding LNB Load
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 3RU Rackmount
Dimensions: 5.25 in. H × 19 in. W × 20 in. D
Net Weight: 11 lb.
Gross Weight: 17 lb.

Available now at Esatcom Inc. Please contact us for pricing and lead time.
