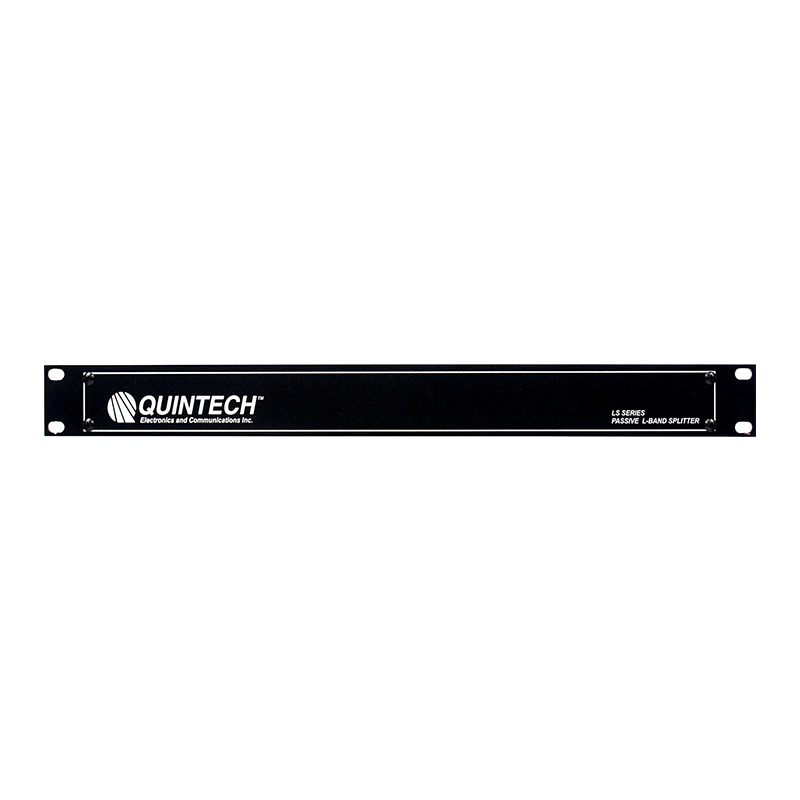

The Quintech LS022150P4FNA000 is a commercial-quality quad 2-way passive L-band splitter containing four independent 1 × 2 splitter sections in a single 1RU chassis. It distributes four RF inputs to two outputs each across the 950–2150 MHz frequency range.

Built with Quintech proprietary microstrip and SMT technology, the LS022150P4FNA000 delivers repeatable RF performance across all inputs and outputs. Each splitter section features an external LNB power insertion terminal and a power-passing Output 1. Both DC paths are diode protected, providing redundant LNB power when both paths are powered.

Specifications:

Product Type: Quad 2-Way Passive L-Band Splitter
Manufacturer: Quintech Electronics
Product Series: LS2 2150P/4
Part Number: LS022150P4FNA000
Configuration: Four Independent 1 × 2 Splitters
RF Inputs: 4
RF Outputs: 8
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
Insertion Loss: 4 dB ±1 dB
Frequency Response: ±0.5 dB
Isolation: 18 dB
Input Return Loss: 13 dB
Output Return Loss: 14 dB
RF Connectors: 75-Ohm Type F
LNB Power Insertion: Rear-Panel External Terminals
DC Power Pass: Output 1 of Each Splitter
LNB Power Redundancy: Dual Diode-Protected DC Paths
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.7 lb.
Gross Weight: 3.7 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
