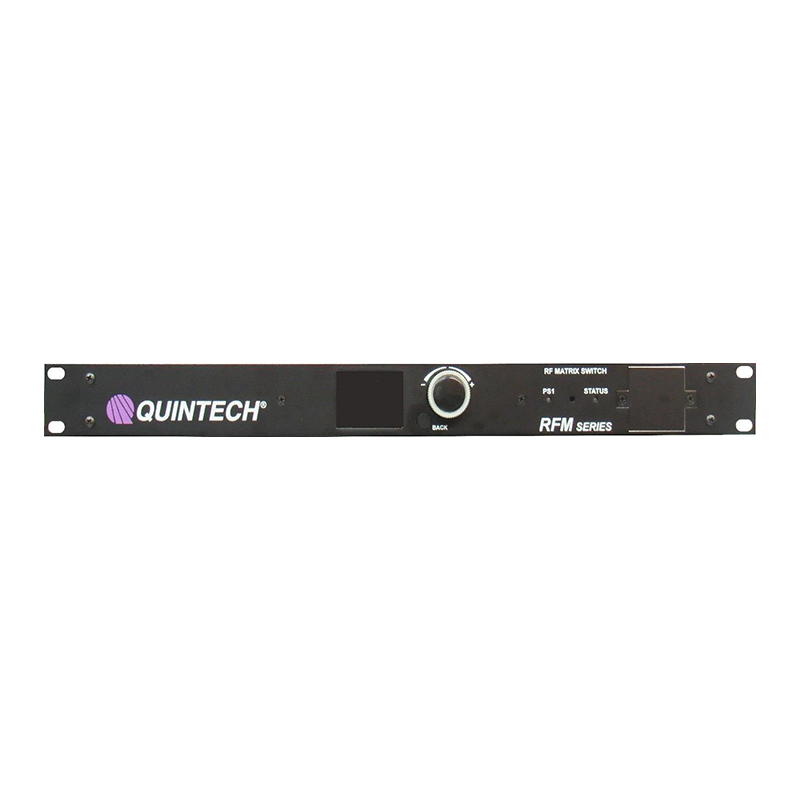

The Quintech RFM220016X1LS000 is a 16×1 RF routing switch that routes any of 16 source signals to a shared output port across the 950–2500 MHz extended L-band frequency range. It can also operate as a 1×16 switch and expand to 256 inputs or outputs by cascading multiple RFM2200 modules.

Designed for centralized RF test, measurement and monitoring applications, the RFM220016X1LS000 automates the connection of multiple devices to a shared analyzer or destination. It provides adjustable output gain, 75-ohm SMA female connectors, local front-panel control and comprehensive remote management through a secure web interface, Ethernet, SNMP, TCP/IP and Telnet.

Specifications:

Product Type: RF Routing Switch
Manufacturer: Quintech Electronics
Product Series: RFM2200
Part Number: RFM220016X1LS000
Standard Configuration: 16×1
Reverse Configuration: 1×16
Expandable Configuration: Up to 256×1 or 1×256
Frequency Range: 950–2500 MHz
RF Connectors: 75-Ohm SMA Female
Default Gain: 0 dB typ.
Frequency Response, 950–2150 MHz: ±1.5 dB
Frequency Response, 950–2500 MHz: ±2.5 dB
Frequency Response, Any 36 MHz: ±0.3 dB
Input P1dB: 5 dBm Minimum
OIP3 at Default Gain: 15 dBm Minimum
Noise Figure: 14 dB Maximum
Input Return Loss: 13 dB Minimum
Output Return Loss: 14 dB Minimum
Input-to-Input Isolation: 50 dB Minimum
Input-to-Output Isolation: 50 dB Minimum
Gain Adjustment Range: -24.5 to +7 dB
Gain Step Size: 0.5 dB
Crosspoint Switching Time: 150 ms typ.
Break-to-Make Time: Less Than 2 µs
Maximum Input Power: 20 dBm, No Damage
Maximum DC on Any RF Port: 30 VDC
Local Control: 2.2-Inch LCD with Rotary Knob
Network Interface: 10/100/1000BASE-T Ethernet
Remote Control: Secure Web Server, SNMP v2c/v3, TCP/IP and Telnet
TCP/IP Protocol: Quintech 1.21/2.15, Port 9100
Expansion Interface: XR Bus
Time Synchronization: NTP Client
Alarms: SNMP Status and Crosspoint-Change Traps
Logging: Syslog, SQL or CSV
Power Requirements: 100–240 VAC, 50/60 Hz, 1 A Maximum
Power Consumption: 9 W
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 18.5 in. D
Net Weight: 6 lb.
Gross Weight: 9 lb.
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +75°C
Relative Humidity: 20% to 90%, Non-Condensing
Maximum Operating Altitude: 10,000 ft. AMSL
