Quintech LC122150A1FXA013 950–2150 MHz 12-Way Active L-Band Combiner

Quintech LC122150A1FXA013 12-Way Active L-Band Combiner with 10 MHz Reference Pass and AC Power

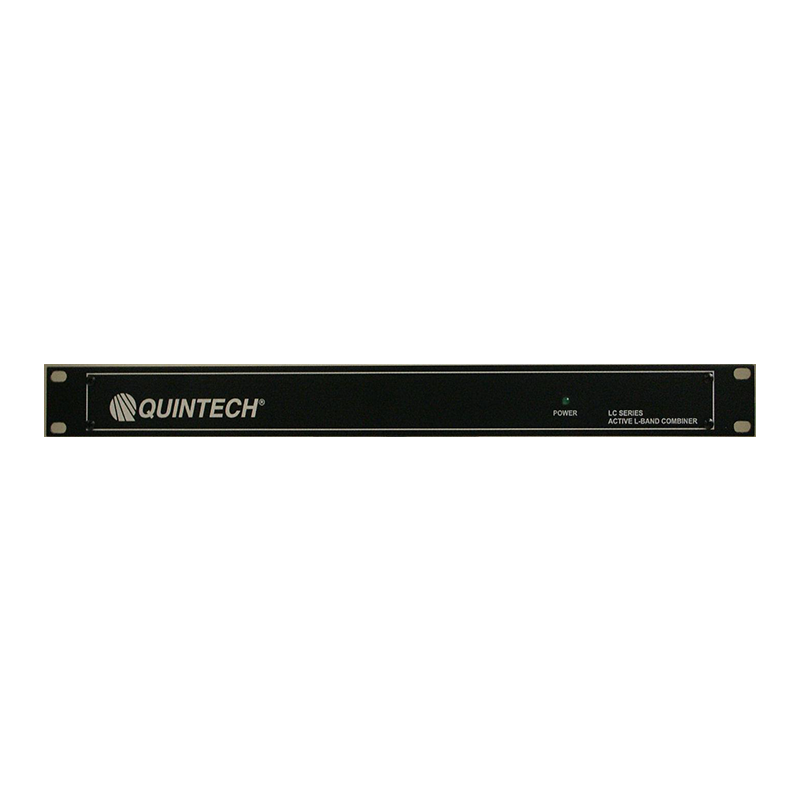

The Quintech LC122150A1FXA013 is a commercial-quality 12-way active L-band combiner that combines 12 RF input signals into one output across the 950–2150 MHz frequency range. Its zero-loss design provides dependable signal combining without the passive loss normally associated with high-port-count combiners.

Built with Quintech proprietary microstrip and SMT technology, the LC122150A1FXA013 delivers repeatable RF performance across all inputs. Input Port 1 passes a 10 MHz reference signal to the output. The unit features 75-ohm Type F connectors and an internal universal AC power supply for straightforward integration into satellite, broadcast, telecommunications and centralized RF distribution systems.

Specifications:

Product Type: 12-Way Active L-Band Combiner
Manufacturer: Quintech Electronics
Product Series: LC12 2150A
Part Number: LC122150A1FXA013
Configuration: 12 × 1
RF Inputs: 12
RF Outputs: 1
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
P1dB: -2 dBm per Input
Insertion Loss: 0 ±2 dB
Frequency Response: ±2 dB
10 MHz Reference Pass: Input Port 1 to Output
10 MHz Insertion Loss: -0.8 dB ±0.3 dB
Isolation: 18 dB
Input Return Loss: 12 dB
Output Return Loss: 12 dB
Noise Figure: 19 dB
RF Connectors: 75-Ohm Type F
Power Requirements: 100–240 VAC, 50/60 Hz
Power Consumption: 5 W
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 3 lb.
Gross Weight: 5 lb.
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
