Quintech LC242150A1FXB000 950–2150 MHz 24-Way Active L-Band Combiner

Quintech LC242150A1FXB000 24-Way Active L-Band Combiner, 950–2150 MHz, Type F

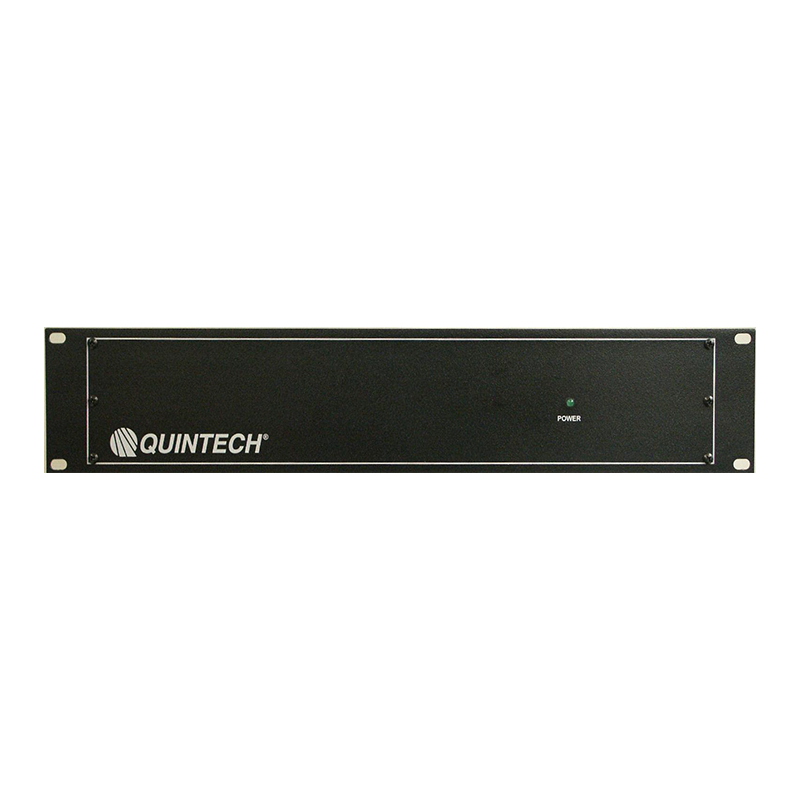

The Quintech LC242150A1FXB000 is a commercial-quality 24-way active L-band combiner designed to combine up to 24 RF signals across the 950–2150 MHz frequency range. Its proprietary microstrip and SMT construction delivers consistent signal levels, reliable impedance matching and repeatable performance across all input and output ports. The 2RU rackmount unit features 75-ohm Type F connectors and universal 100–240 VAC power for satellite, broadcast and RF signal distribution systems.

Specifications:

Manufacturer: Quintech Electronics

Model: LC24 2150A AC

Part Number: LC242150A1FXB000

Product Type: 24-Way Active L-Band Combiner

Frequency Range: 950–2150 MHz

Impedance: 75 ohms

P1dB: -5 dBm per input

Insertion Loss: 0 ±2 dB

Frequency Response: ±2.0 dB

Isolation: 18 dB

Input Return Loss: 13 dB

Output Return Loss: 12 dB

Noise Figure: 27 dB

RF Connectors: Type F, 75 ohms

Power Requirements: 100–240 VAC, 50/60 Hz

Power Consumption: 9 W

Operating Temperature: 0°C to +50°C at up to 95% RH, non-condensing

Storage Temperature: -10°C to +70°C at up to 95% RH, non-condensing

Mechanical: 2RU, 3.5 in. H × 19 in. W × 14 in. D

Weight: 6.5 lb net; 10 lb boxed

Country of Manufacture: USA

Important: All unused RF input ports must be terminated with 75-ohm terminations.
