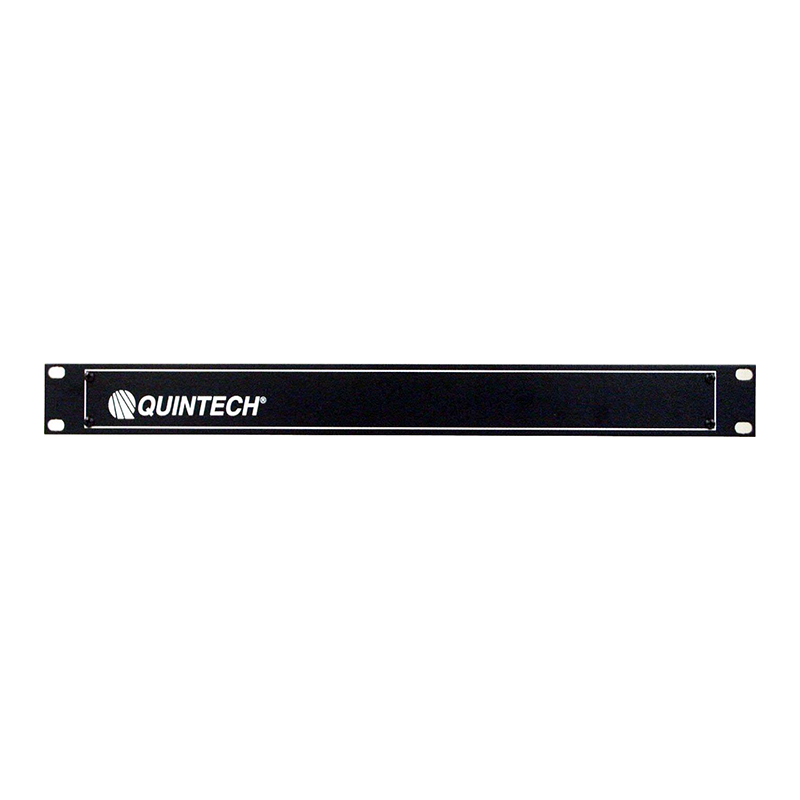

Quintech LC042150P1FNA011 950–2150 MHz 4-Way Passive L-Band Combiner

Quintech LC042150P1FNA011 4-Way Passive L-Band Combiner with 10 MHz Reference Pass

The Quintech LC042150P1FNA011 is a commercial-quality 4-way passive L-band combiner that combines four RF input signals into one output across the 950–2150 MHz frequency range. Its passive design requires no external power supply.

Built with Quintech proprietary microstrip and SMT technology, the LC042150P1FNA011 provides repeatable RF performance and dependable impedance matching across all inputs. Input Port 1 passes a 10 MHz reference signal to the output, making the unit suitable for satellite, broadcast, telecommunications and centralized RF distribution systems requiring reference-frequency transport.

Specifications:

Product Type: 4-Way Passive L-Band Combiner
Manufacturer: Quintech Electronics
Product Series: LC4 2150P
Part Number: LC042150P1FNA011
Configuration: 4 × 1
RF Inputs: 4
RF Outputs: 1
Frequency Range: 950–2150 MHz
Impedance: 75 Ohms
Insertion Loss: 7.5 dB ±1 dB
Frequency Response: ±1 dB
10 MHz Reference Pass: Input Port 1 to Output
10 MHz Insertion Loss: 0.3 dB ±0.2 dB
Isolation: 18 dB
Input Return Loss: 16 dB
Output Return Loss: 13 dB
RF Connectors: 75-Ohm Type F
Power Requirement: None; Passive Design
Operating Temperature: 0°C to +50°C
Storage Temperature: -10°C to +70°C
Relative Humidity: Up to 95%, Non-Condensing
Mechanical Format: 1RU Rackmount
Dimensions: 1.75 in. H × 19 in. W × 6.5 in. D
Net Weight: 2.5 lb.
Gross Weight: 3.5 lb.
Country of Manufacture: USA

Important: All unused RF input ports must be terminated with 75-ohm terminations.
